1. Dry marine exhaust systems
- Used on larger commercial vessels or generator sets
- Operate at very high temperatures
- Require heat insulation and vibration control
- Typically combined with a water separator or silencer
Marine exhaust parts
Technical buying guide · 2025
Marine exhaust parts – complete guide for boat owners & engineers (2025)
Understand how marine exhaust systems work, which components matter most, and how to choose OEM-quality parts that keep your engines safe, efficient, and compliant.
Introduction
A reliable marine exhaust system is one of the most critical components of any vessel’s engine installation. Whether you operate a commercial ship, workboat, yacht, or industrial marine engine, properly functioning marine exhaust parts ensure safe operation, optimal performance, and long engine life.
In this comprehensive guide, we break down all essential marine exhaust components, common failure symptoms, maintenance tips, selection advice, and how to source high-quality OEM parts for MTU, MAN, Deutz, MWM and Volvo Penta at MOPA Motorparts.
If you're looking to understand, inspect, repair, or upgrade your marine exhaust system — this is the complete resource you need.
Direct access to all exhaust categories
What are marine exhaust parts?
The marine exhaust system removes combustion gases from the engine while controlling temperature, reducing noise, and preventing seawater from entering the cylinders. Its design depends on engine type, vessel configuration, and cooling system.
There are two main categories:
2. Wet marine exhaust systems
- Most common for pleasure craft, workboats, and small–medium engines
- Mix cooling water with the exhaust gases to reduce temperature
- Require proper backpressure control
- Depend on hoses, elbows, and water-lock silencers
Both systems contain critical parts that must withstand temperature fluctuations, corrosion, vibration, and constant stress.
Section 01 · Components
Key marine exhaust components
An overview of the main exhaust parts on marine engines – including typical failure patterns and direct access to the relevant shop categories.
Core partsengine & exhaust line
Below you will find an easy-to-understand breakdown of the most important components, including links to the corresponding categories in your shop.

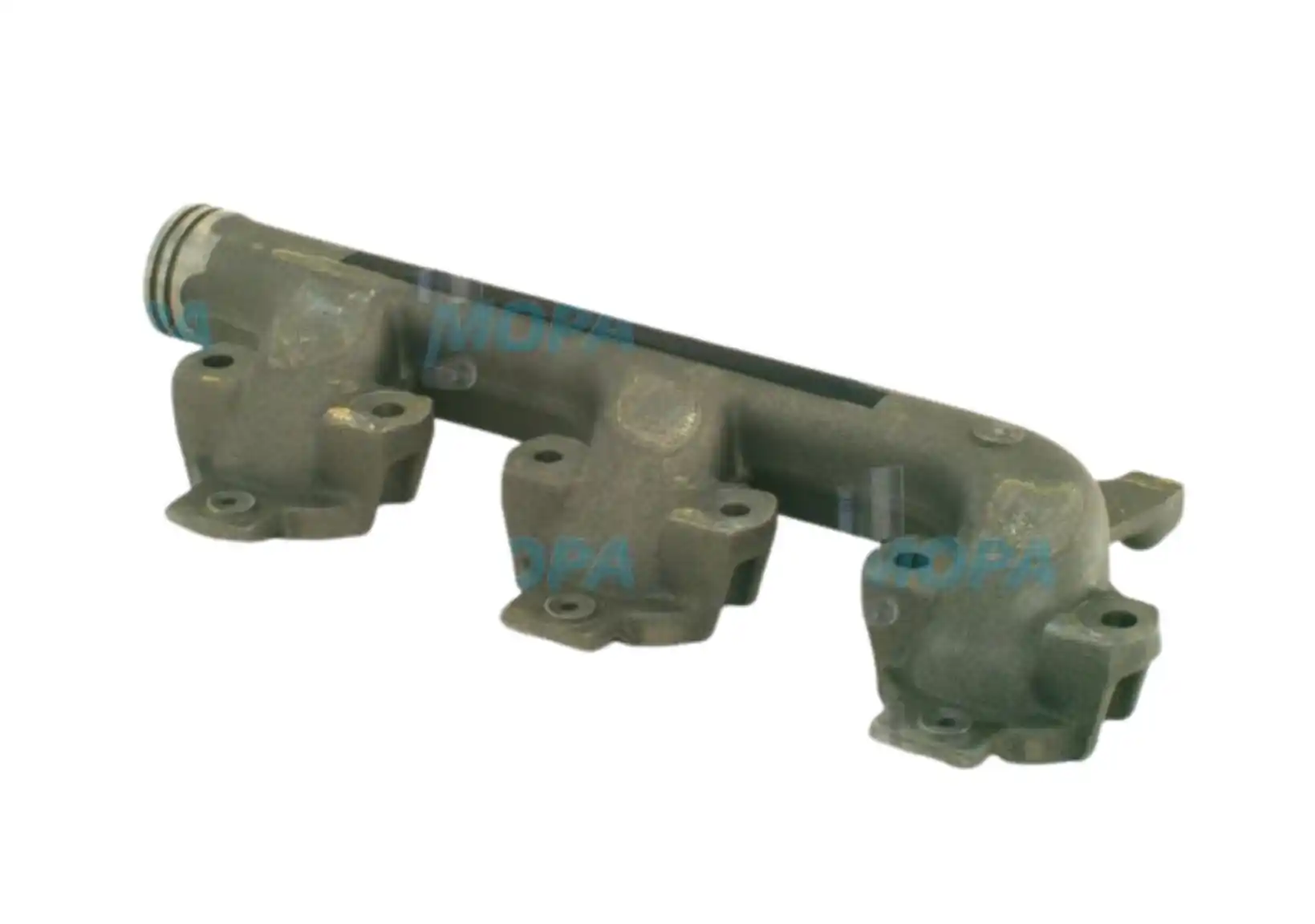

Exhaust manifolds
The manifold channels exhaust gases from each cylinder into a single flow. Marine manifolds face extreme thermal cycling and are prone to internal corrosion.
Typical failure signs:
- Rust flakes inside cooling passages
- External cracks
- Engine overheating
- Water intrusion into cylinders
Shop now: Exhaust manifold · Exchange manifold
Exhaust elbows
The exhaust elbow mixes cooling water into the hot exhaust stream and directs it toward the exhaust hose.
Reasons to replace:
- Saltwater corrosion eating through internal walls
- Reduced water flow
- Exhaust leaks causing steam or smoke
Shop now: Exhaust elbow

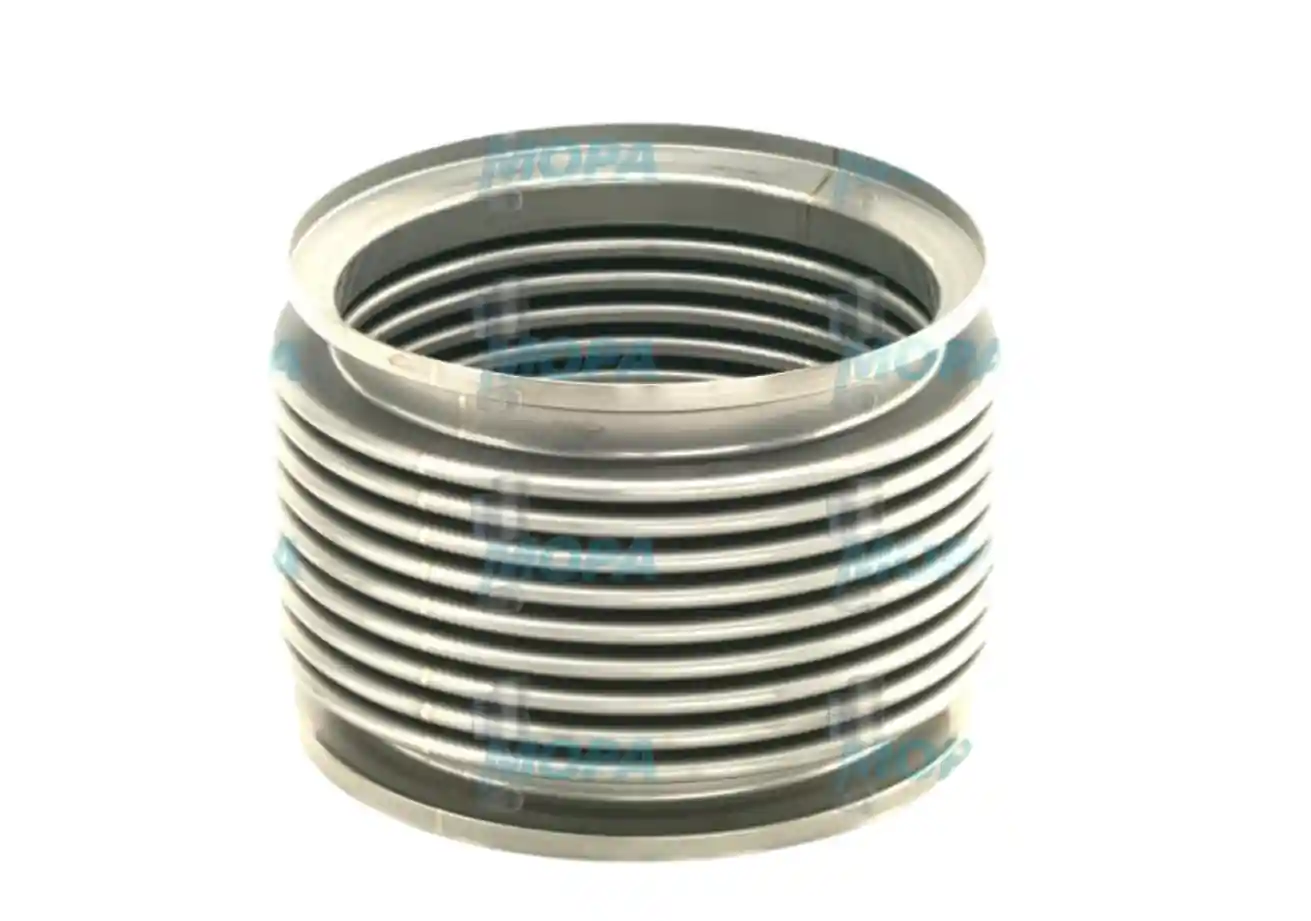

Exhaust pipes & pipe bellows
Pipes and bellows handle the transfer of gases while accommodating engine movement and vibration.
Common issues:
- Cracking
- Heat fatigue
- Leaks creating dangerous fumes or overheating
Shop now: Exhaust pipe · Exhaust pipe bellows · Bellows
Exhaust silencers
Silencers reduce engine noise and backpressure while maintaining smooth gas flow.
You can find:
- Water-lock silencers
- Inline silencers
- High-capacity stainless silencers
Shop now: Exhaust silencer · Silencer · Silencer housing
Exhaust housing
The exhaust housing secures critical components and provides structural support in many marine exhaust configurations.
Shop now: Exhaust housing

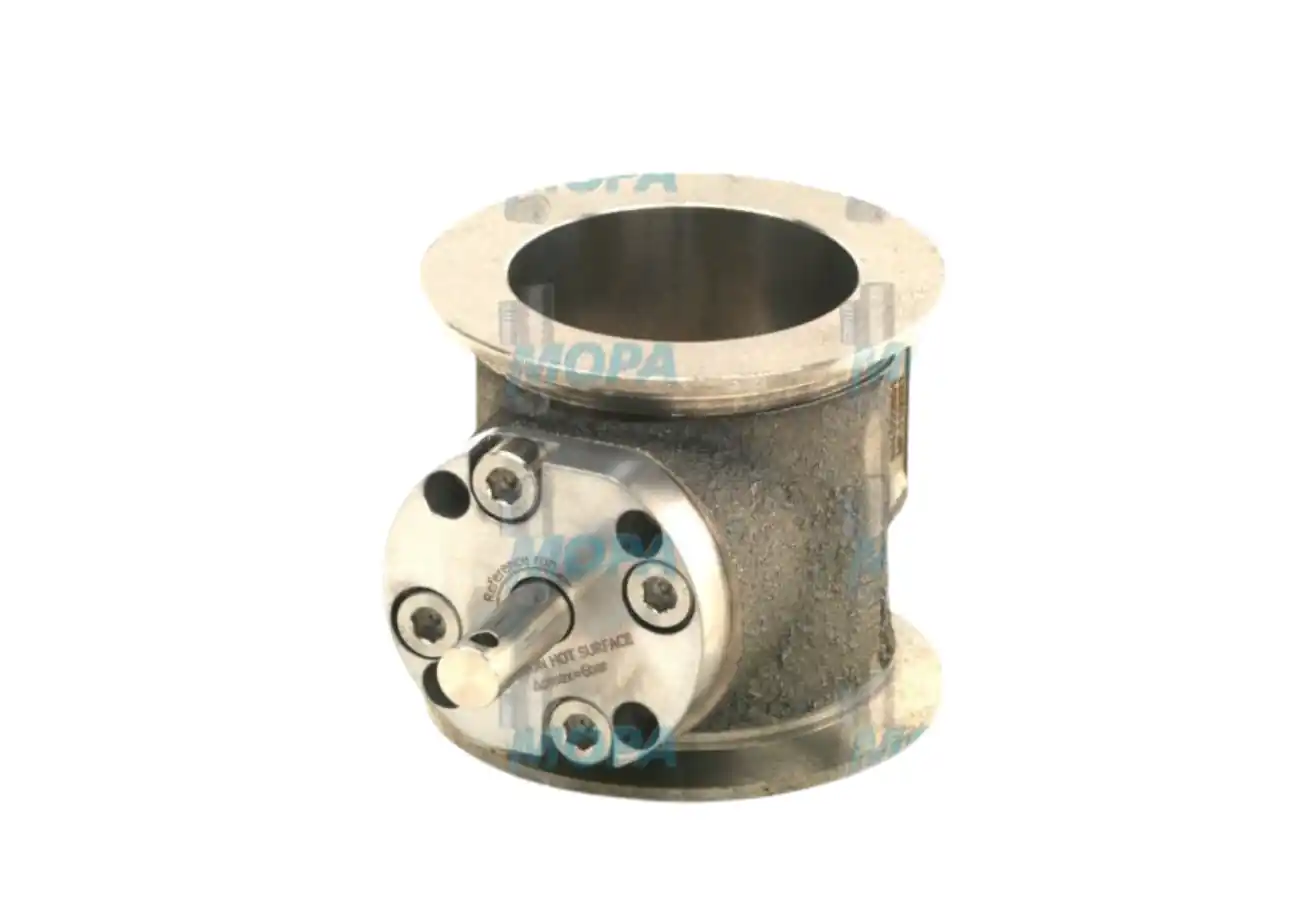

Exhaust flaps
Exhaust flaps prevent seawater from entering the exhaust outlet when the engine is off. A corroded or jammed flap can lead to severe engine damage.
Shop now: Exhaust flap
Catalyst systems
Catalytic converters significantly reduce emissions on modern commercial and pleasure vessels.
Signs of catalyst issues:
- Higher fuel consumption
- Poor emissions test results
- Reduced engine performance
Shop now: Catalyst
Exhaust hoses
Heavy-duty marine exhaust hoses carry hot, wet exhaust away from the engine compartment.
Common failures include:
- Soft spots
- Cracks or delamination
- Overheating damage
Shop now: Exhaust hose
Section 02 · Symptoms
Signs your marine exhaust system needs attention
Typical warning signals that indicate problems in your exhaust line – from overheating to exhaust smell inside the vessel.
1. Overheating or high exhaust temperature
Often caused by:
- Blocked components
- Collapsed hoses
- Internal manifold corrosion
- Restricted water flow
2. Steam or excessive smoke
A sign of failing elbows, leaking gaskets, or insufficient cooling water.
3. Water in engine oil
Usually indicates water entering cylinders via:
- Corroded manifolds
- Faulty elbows
- Damaged exhaust flap
4. Loud or unusual noises
Can come from:
- Failed silencers
- Loose pipes or bellows
- Cracked housings
5. Exhaust smell inside the vessel
A serious safety hazard requiring immediate inspection.
From symptoms to targeted repairs
Once you have identified overheating, steam, noise or water in the oil, the next step is to link these symptoms to the right exhaust components – and select OEM-quality parts that fit your engine setup.
Section 03 · Selection guide
How to choose the right marine exhaust parts
A compact decision framework to help you match parts to your engine, your application and your installation layout.
1. Match your engine model
Use the engine serial number or technical documentation to identify compatible parts.
We supply OEM parts for:
These are high-quality OEM parts — not original factory components.
2. Consider material quality
Common materials include:
- Cast iron (manifolds & elbows)
- Stainless steel (pipes, silencers)
- Reinforced rubber (hoses)
- Composite materials for lightweight installations
3. Dry vs wet exhaust requirements
Dry systems need high-temperature materials; wet systems need corrosion-resistant materials.
4. Backpressure requirements
Incorrect exhaust components can cause:
- Loss of power
- Overheating
- Higher fuel consumption
Section 04 · Risk factors
Common marine exhaust problems and how to prevent them
The most frequent root causes of exhaust failures – and what you can do in daily operation to minimise downtime and damage.
Corrosion
Saltwater is the main enemy. Replace manifolds and elbows every 5–7 years depending on engine hours.
Carbon buildup
Carbon reduces exhaust flow and increases temperature — regular inspection prevents blockages.
Incorrect installation
Misaligned hoses or poorly supported pipes cause cracks and leaks.
Lack of seasonal inspection
A quick annual check can prevent major engine damage.
Section 05 · Maintenance
Maintenance checklist (simple & effective)
Use this checklist as a compact reference for scheduled inspections of your marine exhaust system.
Every 1000–2000 engine hours
- Inspect hoses for cracks
- Check clamps for corrosion
- Verify exhaust flap function
- Look for leaks around manifolds and elbows
Every season
- Remove elbows and check cooling passages
- Inspect silencers for water accumulation
- Measure backpressure if possible
Every 5 years
- Replace elbows and often manifolds
- Renew exhaust hoses if aging is visible
Section 06 · Brands
Top marine exhaust brands we supply (OEM quality)
OEM-quality parts matched to leading marine engine manufacturers – with reliable fit and consistent performance.
At MOPA Motorparts, we offer high-quality OEM parts for:
Our inventory includes exact-fit replacements built to OEM specifications and engineered for durability.
Section 07 · Sourcing
Where to buy high-quality marine exhaust parts
Order directly via our online shop – structured by exhaust categories, engine brands and item groups.
MOPA Motorparts specializes in OEM parts for leading marine engines. All items undergo rigorous quality control and are shipped quickly worldwide.
Browse by category:
Section 08 · Why MOPA
Why customers choose MOPA Motorparts
A specialised partner for marine and stationary engines – with a clear focus on OEM parts and reliable supply.
- High-quality OEM parts for MTU, Deutz, MWM & Volvo Penta
- Fast worldwide delivery
- Expert support
- Competitive pricing
- Precise fit guaranteed
Section 09 · Summary
Conclusion
Keep your marine engine safe and efficient by combining regular exhaust inspections with high-quality OEM spare parts.
A well-maintained marine exhaust system is essential for safety, performance, fuel efficiency, and engine longevity. With proper inspection intervals and high-quality replacement parts, you can prevent costly failures and keep your vessel running reliably.
MOPA Motorparts is your trusted source for OEM parts for MTU, Deutz, MWM and Volvo Penta — including manifolds, elbows, hoses, silencers, catalysts and more.
👉 Visit www.mopamotorparts.com
Order exhaust manifolds, elbows, hoses, silencers and more directly online.
Section 10 · FAQ
FAQ – Marine exhaust parts
Short answers to the most common questions from boat owners, engineers and fleet managers.
How long do marine exhaust manifolds last?
Typically 5–7 years, depending on saltwater use and maintenance.
Can I run the engine with a leaking exhaust elbow?
No — this can lead to severe overheating and even hydrolock.
Why do elbows corrode so quickly?
Because seawater and exhaust gases mix inside them, creating aggressive internal corrosion.
What happens if seawater enters my exhaust system?
It may flow backward into the cylinders and severely damage the engine. Exhaust flaps and proper installation prevent this.
Are your parts original brand components?
No — we supply high-quality OEM parts for MTU, Deutz, MWM and Volvo Penta. They meet the specifications but are not official brand products.
