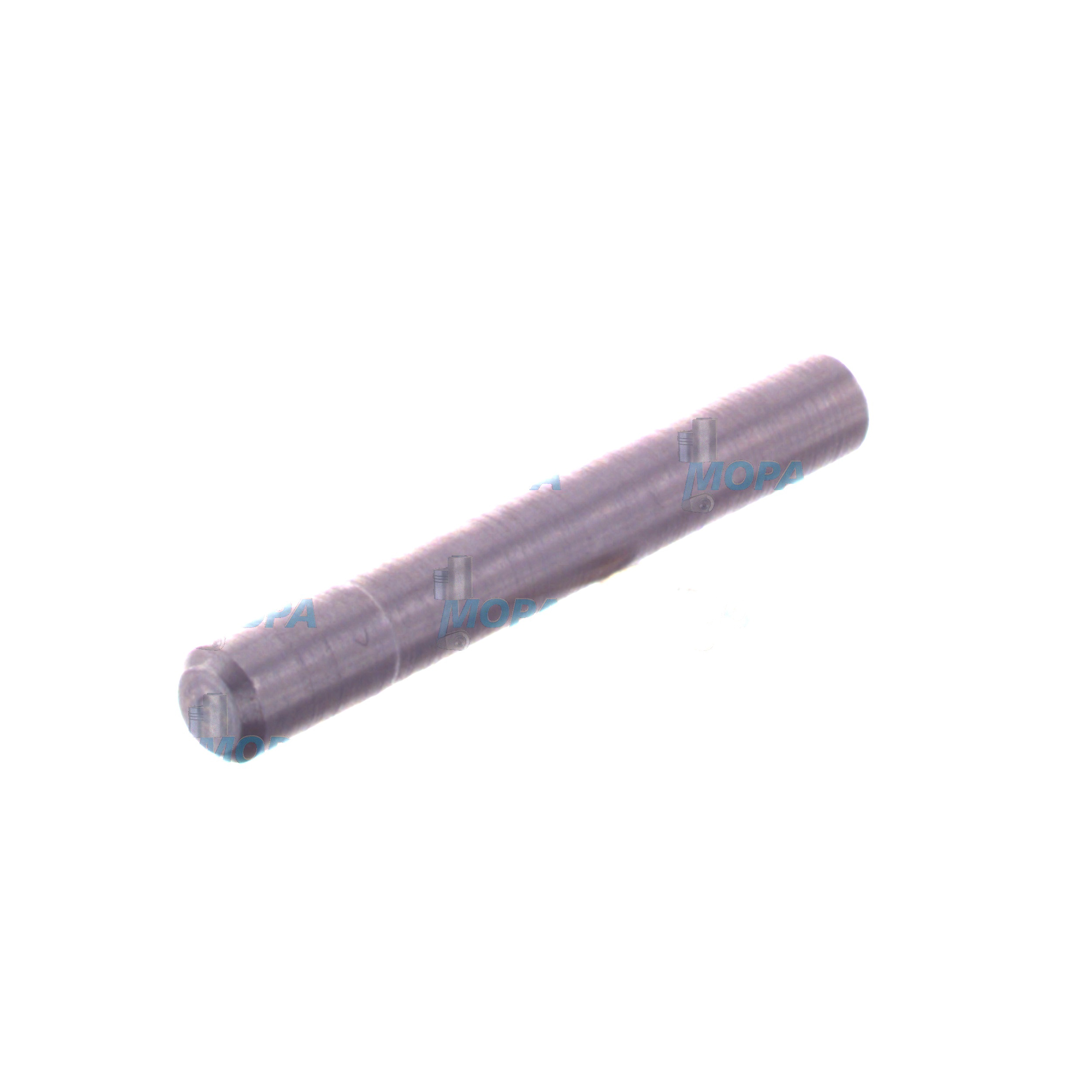

LOCATING PIN connecting elements for high‑performance engines

Connecting elements are the precision hardware that fasten, align, and secure the major assemblies of an engine. This category includes bolts, studs, nuts, washers, clamps, keys, and the highly precise LOCATING PIN. In both diesel and gas engines—whether on vessels, in power plants, or industrial installations—these components establish the structural integrity and geometric accuracy that the machine depends on. Without reliable connecting elements, no cylinder head remains sealed, no gear train stays quiet, and no bearing line keeps its alignment over thousands of operating hours.

In a marine engine exposed to vibration, thermal cycling, and corrosive atmospheres, connecting elements are the silent enablers of uptime. They define the load paths between block, head, housings, and auxiliaries, preserving clearances, preloads, and sealing lines. The LOCATING PIN, in particular, is the datum keeper: it ensures that components return to the exact same position after service, allowing maintenance teams to restore fit and performance without chasing tolerances.

Technical function of connecting elements and the LOCATING PIN in an engine

The LOCATING PIN provides repeatable, micrometre‑level positioning between mating parts. In a diesel engine, pins align the cylinder head to the block so that fire rings and coolant/oil passages line up perfectly; in a turbocharger or gear housing, they center the casing to prevent rotor rub and gear mesh errors. While bolts generate clamp force in tension, the LOCATING PIN primarily carries shear and defines the reference coordinate system of the assembly. This separation of roles—position from the pin, preload from the fastener—creates stable joints that resist fretting and leakage.

Typical applications include timing gear covers to crankcases, injection pump brackets to camshaft carriers, main bearing caps to blocks, cam boxes to heads, and exhaust manifold stubs to flanges. In a marine engine, thermal growth and hull‑borne vibration can push joints to their limits; the LOCATING PIN marine engine fit (often H7/m6 or H7/k6) manages differential expansion while keeping positional accuracy. For serviceability, chamfered lead‑ins, ground surfaces, and corrosion‑resistant finishes reduce galling and allow predictable removal.

Fit, materials, and finish: LOCATING PIN OEM parts

LOCATING PIN OEM parts are produced from controlled steel grades and heat treatments to achieve the necessary shear strength and hardness profile. Case‑hardened or through‑hardened bodies with precision grinding deliver roundness and straightness that keep assemblies true. Surface finishes (low Ra values) and protective coatings support longevity in salt‑laden atmospheres. The result is stable sealing pressure across gaskets, consistent gear backlash, and minimal shaft misalignment—key contributors to fuel efficiency and component life in any diesel engine.

• · Accurate alignment of heads, housings, and gear trains.
• · Stable sealing lines for oil, fuel, and coolant circuits.
• · Separation of shear (pin) and clamp load (bolt) for joint stability.
• · Reduced vibration, fretting, and corrosion at interfaces.
• · Repeatable fit after overhaul; faster, error‑free assembly.
• · Dimensional consistency across LOCATING PIN OEM parts.
• · Robust performance under thermal cycling and marine conditions.

Why connecting elements are critical for engine reliability and service life

Engines are systems of precisely related centers and planes. If connecting elements drift out of specification, these relationships degrade. A worn or undersized LOCATING PIN allows housings to creep, which can shift cam timing, increase gear noise, and disturb injector calibration. Misalignment of a cylinder head compromises gasket compression, causing coolant or combustion gas leakage, erosion of sealing lands, and accelerated liner wear. Fretting at joint faces creates abrasive debris that circulates in the oil, shortening bearing life.

Fasteners that lose preload because of poor joint design or surface damage lead to micro‑movement and fatigue cracking. Corroded pins seize in bores, extending dry‑dock time and raising maintenance risk. In worst cases, a drifting datum triggers sensor misreads or protective trips, taking a vessel or power unit offline. Maintaining the integrity of connecting elements—particularly the LOCATING PIN diesel engine interfaces—directly protects uptime, efficiency, and safety.

Advantages of OEM spare parts suitable for connecting elements and LOCATING PIN

When specifying replacements, precision and consistency matter. OEM spare parts suitable for connecting elements replicate the exact dimensions, fits, and material properties defined for the engine platform. That precision eliminates guesswork during overhauls and ensures interchangeability across engine frames and production batches.

• · Tight tolerances and correct fits for datum accuracy.
• · Verified material grades and heat treatment for shear and fatigue strength.
• · High‑quality surface finish and protective coatings for marine environments.
• · Consistent clamp load outcomes when paired with specified fasteners.
• · Reduced installation time; predictable assembly behavior.
• · Traceable production and documentation for compliance and audits.
• · Lower lifecycle cost through longer service intervals and fewer reworks.

Using LOCATING PIN OEM parts within the broader set of connecting elements preserves engine geometry, supports stable emissions performance, and minimizes unplanned downtime. For purchasers and fleet managers, this translates into dependable schedules, efficient maintenance planning, and controlled total cost of ownership.

MOPA as your partner for OEM spare parts connecting elements

MOPA is an experienced and reliable partner for OEM spare parts connecting elements, including the LOCATING PIN for diesel and gas engines. We focus on speed, quality, and security in the trade of OEM parts: rapid quotations, dependable lead times, and careful handling from sourcing to delivery. Our team supports cross‑references to engine maker numbers, advises on fit classes and materials for specific applications (e.g., marine engine deck conditions), and ensures that the parts you receive are precisely what your equipment requires.

With a robust supplier network and logistics tailored to maritime and power markets, MOPA helps reduce downtime and risk. Whether you need a single LOCATING PIN for an urgent repair or a complete kit of connecting elements for a scheduled overhaul, we deliver the technical certainty and responsiveness that keep engines running.

Conclusion: the value of LOCATING PIN connecting elements

Connecting elements—especially the LOCATING PIN—secure the geometry that makes engines efficient, quiet, and durable. Selecting OEM spare parts suitable for connecting elements preserves accuracy, speeds maintenance, and protects performance over the full service life of diesel and marine engines.

For dependable sourcing with technical depth, MOPA provides fast, secure access to the OEM parts your engine depends on.
