THREADED UNION Fittings and armatures for marine and diesel engines

Fittings and armatures are the connective tissue of any combustion engine’s fluid and gas systems. They route, control, and secure the flow of fuel, lube oil, coolant, compressed air, and exhaust gas under high pressure and temperature. Within this category, the THREADED UNION is a critical component: it enables lines to be connected and disconnected without cutting pipework, preserving system integrity while simplifying maintenance on marine engine and diesel engine installations. Properly engineered fittings and armatures stabilize operating parameters, reduce leakage risk, and help deliver consistent performance across demanding duty cycles.

Technical function of Fittings and armatures with THREADED UNION in engine systems

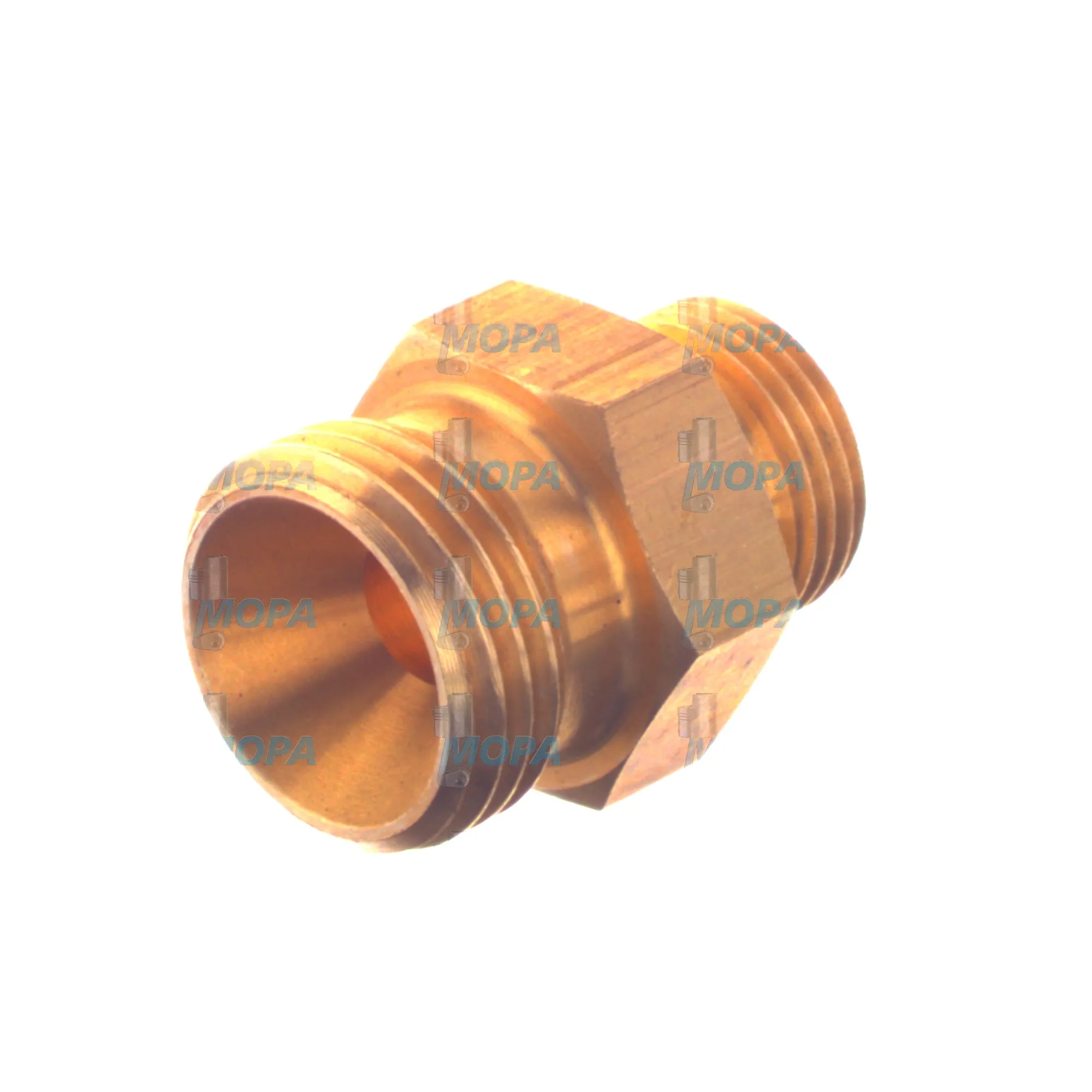

A THREADED UNION consists of two tailpieces and a central nut that draws the ends together to create a tight, repeatable seal. In engine environments, unions are deployed on fuel returns, lube oil galleries, jacket water circuits, charge-air coolers, and instrumentation take-offs. Their purpose is to provide a leak-tight, serviceable joint that withstands vibration, thermal cycling, and pulsating pressures typical of a marine engine or high-output diesel engine.

Depending on the application, unions use different sealing concepts—metal-to-metal ground seat, flat seat with gasket (e.g., PTFE, graphite), or O-ring captured designs—to achieve reliable sealing with minimal torque. Correct selection of thread form is essential: NPT and BSPT (tapered), BSPP and ISO 228 (parallel), and metric threads are common, and mismatching them is a frequent root cause of leaks and thread galling. High-grade stainless steels (AISI 316/316L), carbon steels with anti-corrosion coatings, and duplex alloys are often specified in engine rooms to resist salt-laden atmospheres and chemically aggressive media.

Well-designed fittings and armatures maintain line alignment, manage stress, and preserve flow area to minimize pressure drop. Class ratings (e.g., PN16–PN40, ASME 3000/6000) indicate pressure capability, while temperature limits reflect material and seal selection. Quality unions for OEM parts programs are typically hydrotested and dimensional-checked to standards such as ASME B16.11, EN 10241, or company-specific specifications.

• · Robust sealing with repeatable assembly torque.
• · Compatibility with NPT, BSPP/BSPT, ISO, and metric thread systems.
• · Materials engineered for corrosion and temperature resistance.
• · Pressure classes matched to fuel, oil, and coolant circuits.
• · Vibration- and shock-resistant designs for marine engine duty.
• · Service-friendly disassembly without cutting pipework.
• · Tight tolerances to maintain flow and reduce pressure loss.
• · Traceability and testing aligned with OEM parts requirements.

Importance of Fittings and armatures for reliable engine operation

In engines, small sealing imperfections compound into serious failures. If fittings and armatures—especially a THREADED UNION—are worn, incorrectly matched, or installed with damaged threads, several risks follow: fuel or oil leaks that increase fire risk; aeration of lube oil causing bearing wear; loss of fuel rail pressure and poor injection atomization; coolant loss leading to thermal stress and liner distortion; and contamination ingress that accelerates corrosion. Vibration can progressively loosen poor-quality unions, producing intermittent faults that are difficult to diagnose and that erode efficiency and uptime.

Conversely, dimensionally stable unions maintain circuit pressures and protect downstream components like injectors, turbochargers, and bearings. Stable temperatures, proper lubrication film strength, and consistent fuel delivery all depend on the integrity of the fittings that tie the system together. For vessels and power plants, the cumulative effect is measurable: fewer unplanned stops, extended service intervals, and predictable lifecycle costs.

Advantages of OEM spare parts suitable for Fittings and armatures

Choosing OEM spare parts suitable for Fittings and armatures—such as a THREADED UNION for diesel engine or marine applications—secures the dimensional fidelity and metallurgical consistency needed in critical circuits. Threads gauge correctly every time, seating surfaces match the mating halves, and pressure ratings align with the engine builder’s specification. This precision limits rework, reduces assembly time, and cuts the risk of leaks after commissioning.

Beyond fit and finish, OEM spare parts deliver validated materials, documented testing, and reliable supply continuity. Certificates (e.g., EN 10204 3.1) and batch traceability underpin safety audits and class approvals. Over the asset’s life, fewer replacements and avoided collateral damage lower the total cost of ownership, protecting budgets while sustaining performance and service life.

MOPA as your partner for THREADED UNION and Fittings and armatures OEM parts

MOPA supports operators and technical buyers with fast, secure sourcing of OEM parts for diesel and gas engines, including THREADED UNION components and a broad range of fittings and armatures. Our network and stocked items enable short lead times, while rigorous quality controls and documentation ensure each part arrives specification-compliant and ready for service. Purchasers benefit from accurate order handling, export-ready packaging, and dependable logistics—vital for time-sensitive dockings and planned overhauls.

With MOPA, you gain a partner focused on speed, quality, and security in the trade of OEM parts. From matching thread standards to advising on materials for corrosive marine environments, our team helps reduce downtime and technical risk across your fleet or power portfolio.

Selection tips for THREADED UNION in marine and diesel engine applications

Match the thread standard to existing equipment (NPT vs. BSP vs. ISO 228) and verify with gauges. Select materials for the medium and environment: stainless steel for seawater exposure, carbon steel with appropriate coating for oil circuits, duplex where chloride stress cracking is a concern. Confirm pressure class and temperature limits, specify the sealing concept (ground seat, gasketed, or O-ring), and use approved sealants compatible with fuel or oil. Finally, consider vibration mitigation—locking features or supportive clamps can extend service life in high-shock zones.

Conclusion: THREADED UNION value in Fittings and armatures

A correctly specified THREADED UNION is a small component with outsized impact on engine safety, efficiency, and maintainability. By using OEM spare parts suitable for Fittings and armatures, operators secure precise fit, proven materials, and reliable performance over the full service life of marine and diesel engines.
