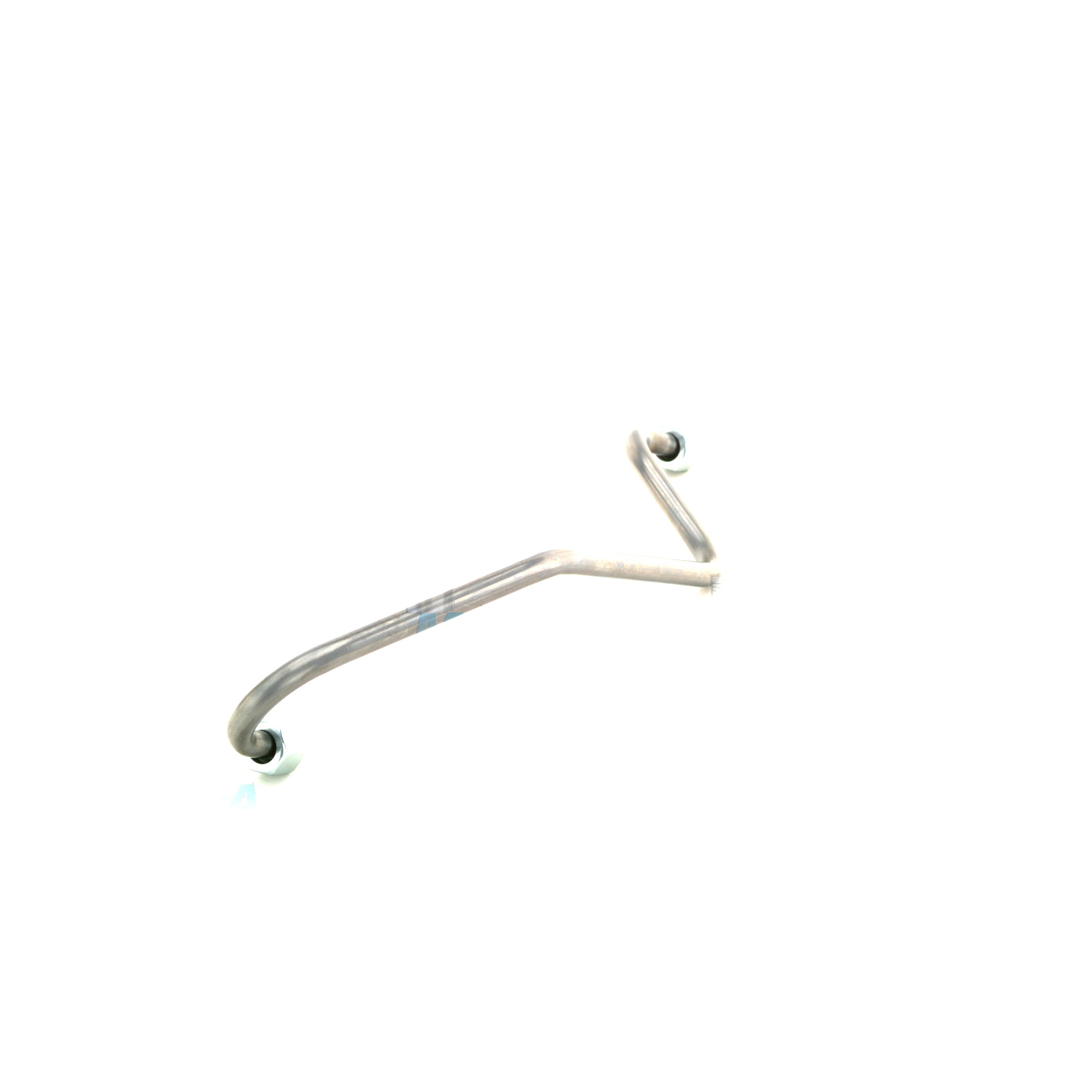

DRAIN LINE lines and pipes for marine, diesel and gas engines

Lines and pipes form the circulatory system of any engine. Whether in a marine engine room, a power plant genset, or a heavy-duty diesel engine, these rigid and flexible conduits transport fuel, lube oil, coolant, charge air, and blow-by gases with defined flow, pressure, and cleanliness. Within this category, the DRAIN LINE is a critical subset that returns fluids—such as lube oil from turbochargers, condensate from charge air coolers, or leak-off fuel from injectors—safely back to tanks or the crankcase. Well-engineered lines and pipes ensure stable performance, protect surrounding equipment, and uphold safety and compliance.

From precision-bent high-pressure fuel pipes to corrosion-resistant coolant tubes and gravity-fed drain lines, each component is dimensioned for media, temperature, and vibration environment. Correct routing, wall thickness, and fittings prevent leaks, maintain pressure, and avoid hotspots. For buyers and technical decision-makers, selecting the right lines and pipes is not only a maintenance decision—it is a lifecycle decision that influences uptime, efficiency, and total cost of ownership.

Technical function of lines and pipes in diesel and marine engines

Lines and pipes distribute and return fluids with controlled hydraulic behavior. In a diesel engine, high-pressure fuel pipes deliver injection pressures that can exceed 1,500 bar, while lube oil lines feed bearings at typically 3–6 bar and coolant lines carry heat away at 2–4 bar. Air and exhaust pipes manage boost pressure and backpressure. The DRAIN LINE, by contrast, often operates at or near atmospheric pressure and must prioritize unrestricted flow and proper routing to prevent fluid accumulation or aeration.

A DRAIN LINE in a marine engine—for example, the turbocharger oil drain—requires a continuous downward slope to the crankcase, generous internal diameter, and large-radius bends to avoid coking and oil pooling. Where gravity return is not feasible, scavenge pumps are paired with return pipes sized to avoid cavitation. Condensate drain lines on charge air coolers evacuate water to prevent cylinder damage, while injector leak-off drain lines stabilize rail pressure and reduce fuel aeration. In short, the integrity of each DRAIN LINE protects critical components and stabilizes the larger system.

Material selection and connections are equally decisive. Common specifications include stainless steels such as 316L for hot or corrosive zones, seamless carbon steel for structural strength, and CuNi 90/10 for seawater-exposed cooling circuits on marine engines. Connection standards such as DIN 2353 cutting-ring, ISO 8434/SAE J514 flare, or flanged interfaces ensure repeatable sealing. Supports and clamps are spaced to minimize vibration-induced fatigue; expansion loops accommodate thermal growth; heat shields protect adjacent equipment. Cleanliness is controlled to hydraulic standards (e.g., ISO 4406 targets), minimizing wear in precision components.

• · Unrestricted drainage protects turbochargers and bearings.
• · Corrosion-resistant materials extend service life in harsh marine environments.
• · Optimized routing reduces pressure drop and eliminates fluid traps.
• · Precision-formed geometries fit confined engine spaces reliably.
• · Compatible connectors ensure tight, repeatable seals.
• · Clean, deburred tubes lower contamination risk in diesel engines.
• · Thermal management and shielding reduce coking and heat stress.
• · Vibration-optimized supports prevent fatigue cracks.

DRAIN LINE specifics for diesel engine and OEM parts applications

In a diesel engine, the DRAIN LINE from the turbocharger must be short, with a minimum fall (often 3–5°) and minimal restrictions. Internal surface finish matters: smoother bores reduce deposit formation. For marine engine service, condensate drain lines from intercoolers should incorporate water traps or check valves as specified by the maker, preventing backflow under transient load. When integrating with OEM parts, maintaining the intended internal diameter, bend radii, and connector type keeps the system within the designed flow and thermal envelopes.

Importance of lines and pipes for engine reliability and service life

Because lines and pipes touch every working fluid, small defects multiply quickly into major failures. Corrosion pits can become pinhole leaks, leading to fuel spray or coolant loss. Unsupported spans resonate, causing high-cycle fatigue cracks. Coked oil in a DRAIN LINE starves turbocharger bearings, accelerating failure. Sludge in a return pipe causes backpressure, aeration, and foaming. In marine engine spaces, a failed fuel pipe or drain can create fire risk, contamination, and class non-compliance. Even minor misalignments can overstress fittings, while mixing incompatible materials can trigger galvanic corrosion.

Routine inspection—checking clamps, chafe points, insulation integrity, and weep signs—combined with periodic pressure or vacuum tests and timely replacement of aged lines reduces unplanned downtime. Keeping drain paths clean and hot-zone sections shielded preserves efficiency and protects expensive components such as turbochargers, injectors, and charge air coolers.

Advantages of OEM spare parts suitable for lines and pipes

Choosing OEM spare parts suitable for lines and pipes maintains the engine’s intended hydraulic and mechanical behavior. Geometry, material grade, and connector type are matched to the engine design, so flow, sealing, and thermal expansion behave as engineered. This is especially critical for each DRAIN LINE, where small dimensional deviations can impede gravity return or upset scavenge pump performance.

With OEM spare parts, purchasers benefit from consistent quality controls, documented material traceability, and compatibility with existing brackets, clamps, and manifolds. Installation time is reduced because bends, flares, and flanges align without rework. Over the lifecycle, the result is stable performance, fewer leaks, and better budget predictability through avoided collateral damage and downtime.

• · Correct dimensions and bend radii ensure drop-in fit.
• · Verified materials resist heat, pressure, and corrosion.
• · Cleanliness and surface finish protect sensitive components.
• · Proper connectors reduce leak risk and rework time.
• · Lifecycle efficiency supports uptime and cost control.
• · Consistent quality stabilizes performance across service intervals.

MOPA as your partner for OEM spare parts lines and pipes

MOPA supplies OEM spare parts for lines and pipes with a focus on speed, quality, and security in the trade of OEM parts for diesel and gas engines. Our team sources the right DRAIN LINE for marine engine applications, high-pressure fuel pipes for common-rail systems, and corrosion-resistant coolant tubing for shipboard duty. We support urgent requirements with efficient logistics, precise identification, and documentation to keep your vessel or plant on schedule.

From single replacement pieces to coordinated sets, MOPA emphasizes technical accuracy, material compliance, and packaging that protects critical surfaces and fittings. Customers benefit from responsive quotations, reliable delivery windows, and a catalogue that covers major engine platforms and auxiliary equipment.

Conclusion

Lines and pipes—especially every DRAIN LINE—are fundamental to safe, efficient operation in marine, diesel, and gas engines. Correct routing, materials, and connectors protect performance-critical components and prevent avoidable failures.

By choosing OEM spare parts suitable for lines and pipes, you retain engineered flow characteristics, minimize installation risk, and extend service life. MOPA stands ready to deliver the speed and quality you expect for dependable engine operation.
