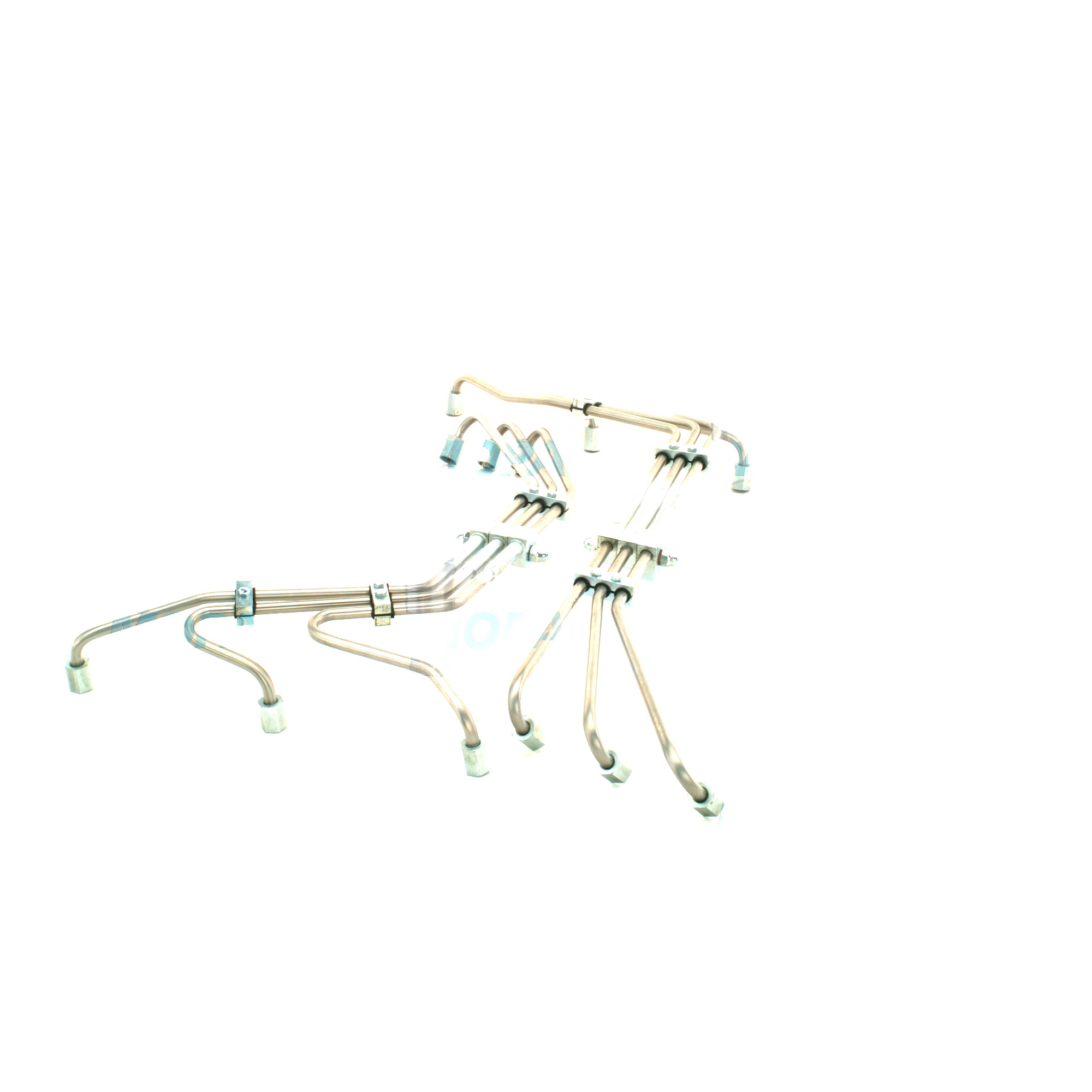

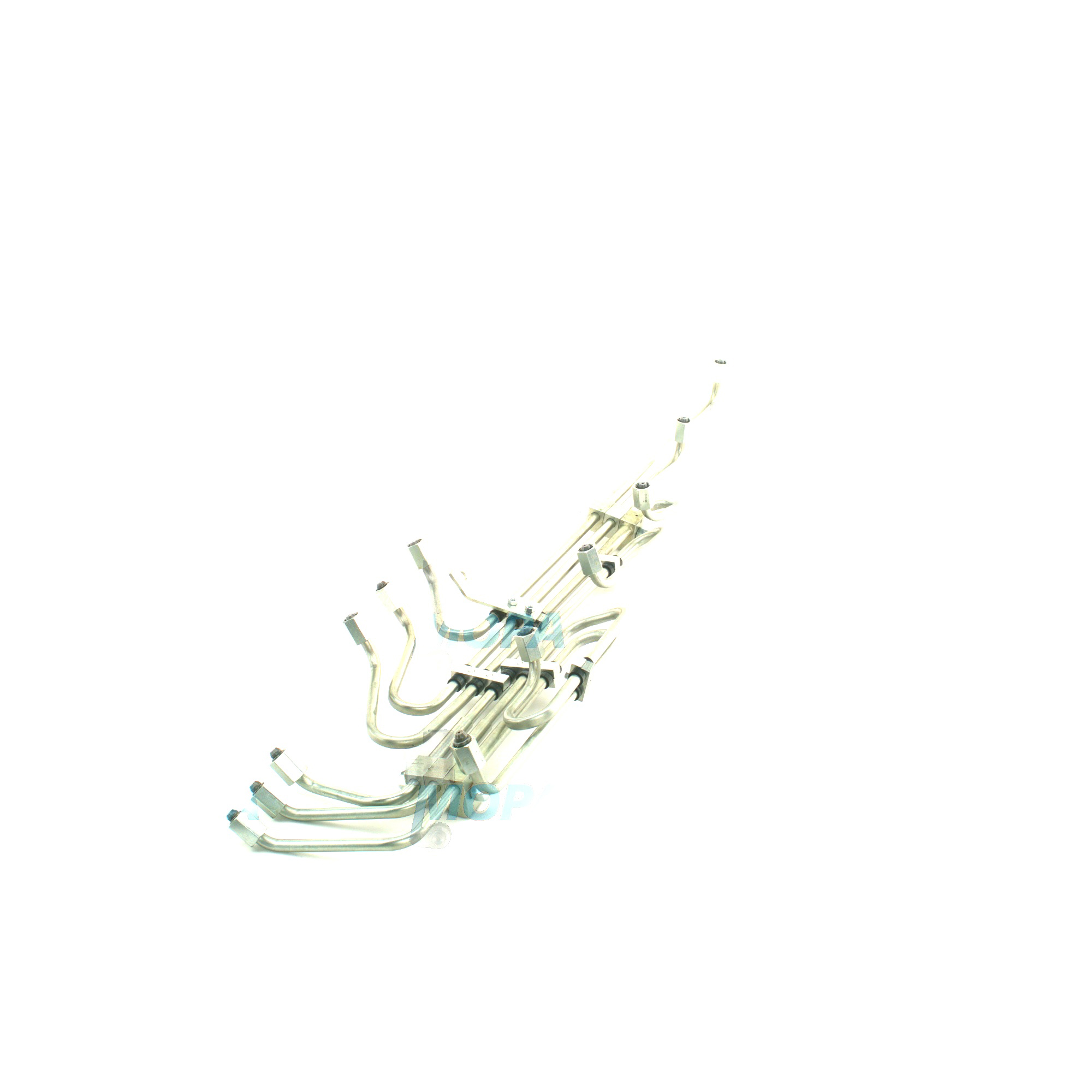

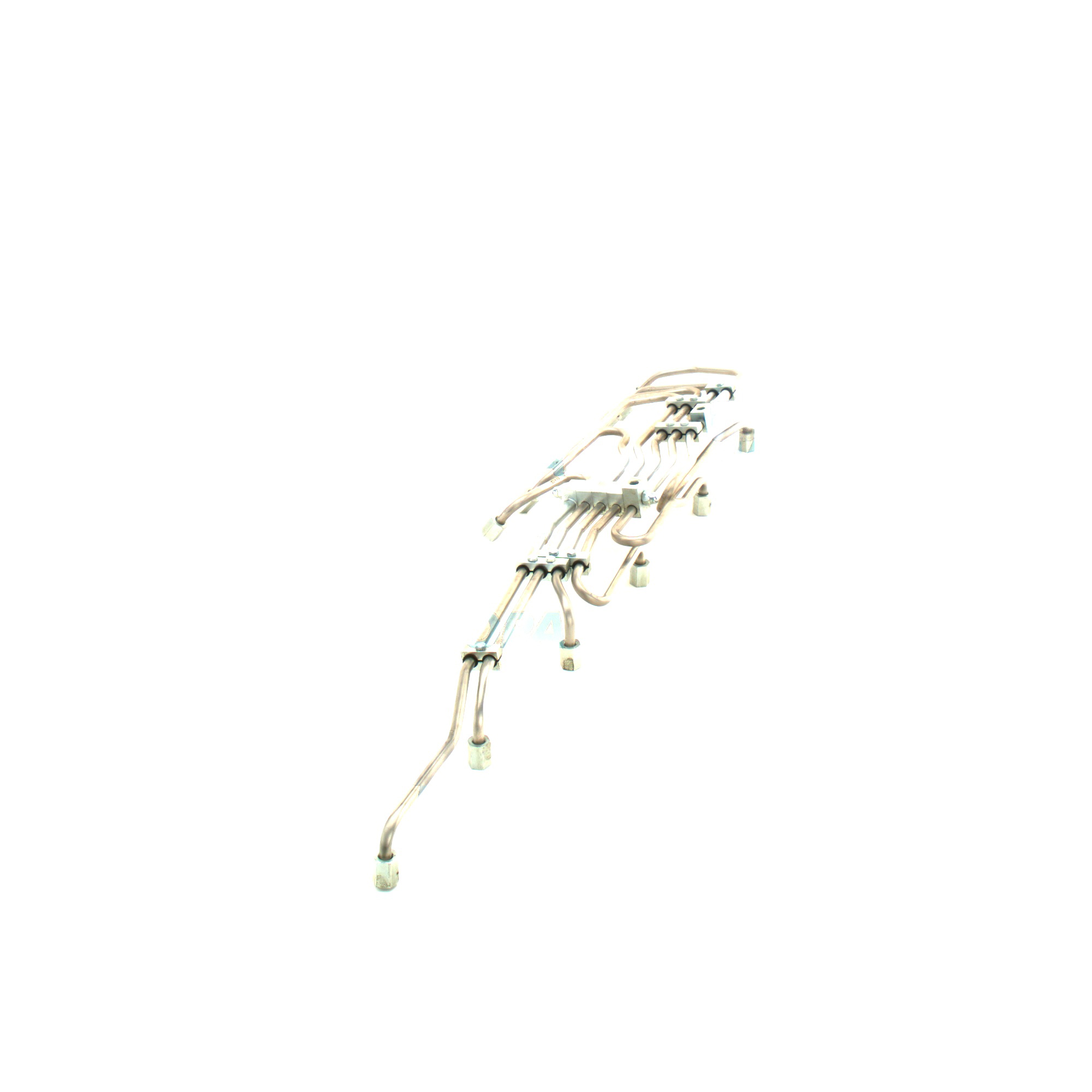

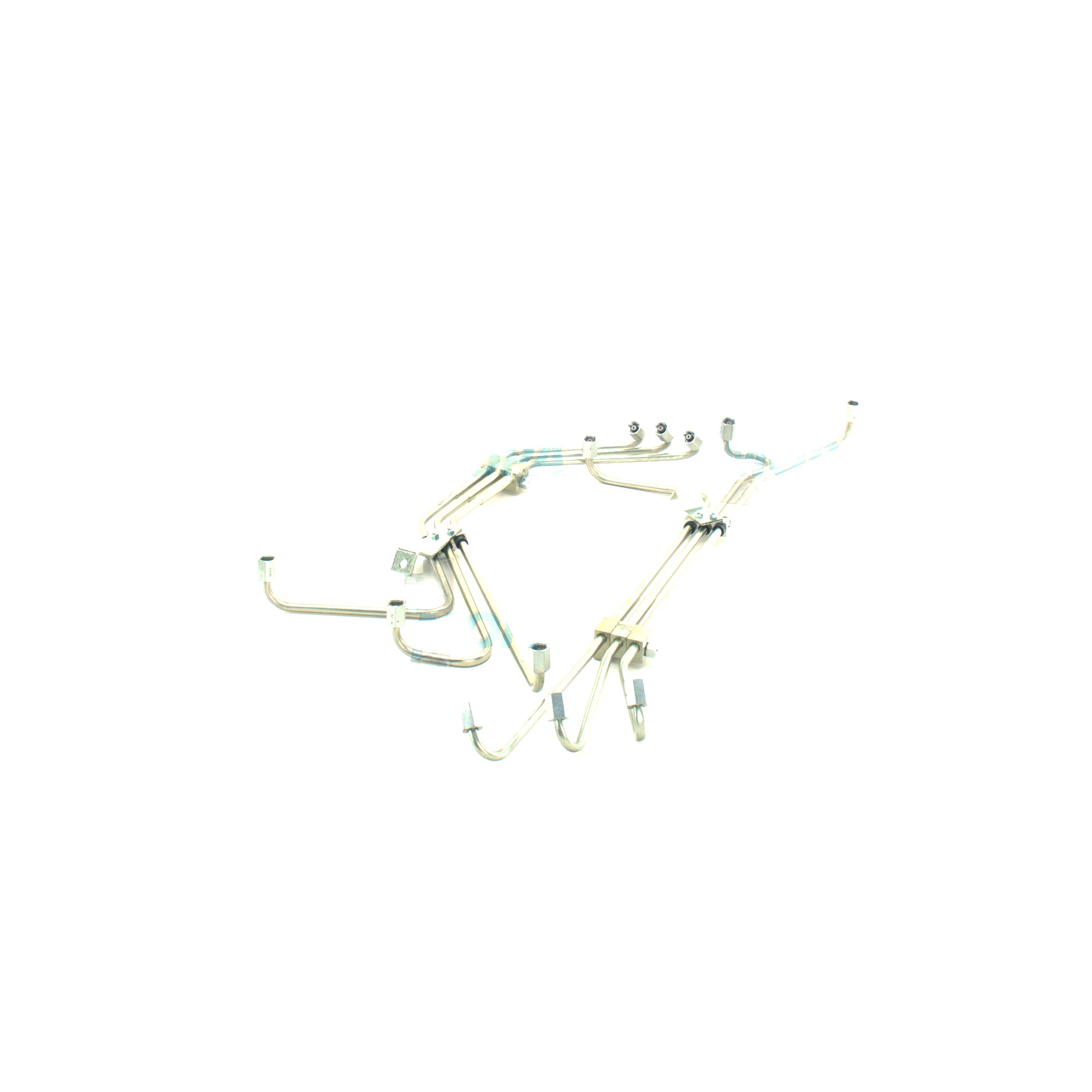

INJECTION LINE SET (leakage secured) for Lines and Pipes in Marine and Diesel Engines

Lines and pipes form the circulatory system of any engine. They route fuel, lubricants, coolant, and compressed air with precision and safety, ensuring the engine can deliver power reliably in harsh environments. Within this category, an INJECTION LINE SET (leakage secured) is among the most safety‑critical assemblies. It transports high‑pressure diesel to the injectors while actively containing and monitoring any leakage, protecting personnel and equipment from atomized fuel spray and heat sources.

For shipowners, power plant operators, and maintenance managers, correctly specified lines and pipes are the foundation of dependable operation. Engine performance, emissions, and service intervals all depend on stable pressures, proper routing, and robust leak protection. Choosing the right INJECTION LINE SET (leakage secured) for a marine engine or diesel engine helps achieve compliance with engine maker specifications and maritime safety rules while improving uptime and lifecycle economics.

Technical function of Lines and Pipes – focus on the INJECTION LINE SET (leakage secured)

Fuel injection lines are precision‑formed, high‑pressure pipes that connect the injection pump or common rail to the injector inlet. An INJECTION LINE SET (leakage secured) adds a second, outer containment layer (jacket) around the inner high‑pressure tube. If the inner tube develops a microcrack or a fitting loosens under vibration, leaked fuel is captured by the outer sleeve and channeled via drain lines to a collector with optional leak detection. This design is particularly important on a marine engine where hot surfaces and confined engine rooms amplify fire risk.

Functionally, the assembly must resist cyclic pressure peaks—often several hundred bar in traditional systems and well above 1,000 bar in modern applications—without dimensional drift. The exact pipe length and internal volume are calibrated to maintain injection timing and pressure wave behavior. Quality lines and pipes are manufactured from seamless precision steel or stainless alloys, mandrel‑bent to tight tolerances, stress‑relieved, and fitted with conical seats or flange connections that preserve sealing integrity under thermal expansion. Correct clamp spacing and anti‑vibration supports prevent fretting and high‑cycle fatigue at anchor points.

In diesel engine rooms, leakage‑secured sets also contribute to regulatory conformity by shielding hot surfaces from atomized fuel. The outer jacket routes any seepage to a safe drain, and integrated sensors can trigger an alarm—an additional safeguard against unnoticed leaks. When specified as INJECTION LINE SET (leakage secured) OEM parts, the geometry, materials, and surface treatments match engine maker requirements for pulse damping, corrosion resistance with marine fuels (MGO, MDO, bio‑blend compatibility), and long‑term cleanliness.

• · High‑pressure integrity and precise internal volume control.
• · Double‑walled containment with safe leak drainage and monitoring.
• · Engineered bends and end‑forms that keep injection timing stable.
• · Robust clamps, guides, and heat shields for vibration and thermal control.
• · Corrosion‑resistant materials and coatings suitable for marine conditions.
• · Cleanliness managed to protect injectors from particulate contamination.
• · Traceable manufacturing and consistent fit across the full line set.

Why Lines and Pipes are crucial for reliable engine operation

Lines and pipes directly influence performance, efficiency, and safety. In fuel systems, even small dimensional changes alter pressure waves and injection timing, increasing specific fuel consumption and smoke. Surface pitting or internal corrosion can shed particles that damage injector needles. Loose clamps or misrouted lines amplify vibration, leading to fatigue cracks at ferrules or bends. A single pinhole can create a high‑velocity spray that ignites on hot surfaces—an unacceptable risk in a vessel or power station.

With an INJECTION LINE SET (leakage secured) on a diesel engine, leakage is contained and directed away from ignition sources, and any anomaly is easier to detect during rounds. Over the engine’s service life, correctly designed lines and pipes maintain pressure stability that supports clean combustion, lower emissions, and reduced wear on pumps and injectors. Conversely, worn, improperly fabricated, or mismatched pipes can cause hard‑starting, misfire, fuel dilution of lube oil, and unplanned shutdowns.

Advantages of OEM spare parts suitable for Lines and Pipes

Specifying OEM spare parts for lines and pipes—especially an INJECTION LINE SET (leakage secured) for a marine engine or diesel engine—delivers consistent performance where tolerances are unforgiving. Matching materials, heat treatment, end‑forms, and surface finishes ensure the pipe set seats correctly, maintains calibrated internal volume, and withstands high‑cycle pressure pulses without microcracking. This fidelity translates into dependable injection events, predictable emissions, and longer service intervals.

From a reliability perspective, OEM spare parts preserve the intended routing and clamp positions, limiting stress concentration and fretting. That reduces the likelihood of leaks and the downstream costs of injector repair or fuel pump damage. From a budget standpoint, the right line set avoids repeated rework, protects expensive injection components, and lowers the risk of operational delays. In short, OEM parts extend service life while protecting performance and safety margins.

MOPA — your partner for OEM spare parts Lines and Pipes

MOPA is an experienced and reliable partner for OEM spare parts across the full spectrum of lines and pipes. Whether you need an INJECTION LINE SET (leakage secured) for a diesel engine, piping kits for a common‑rail marine engine, or associated clamps and heat shields, MOPA focuses on speed, quality, and security in the trade of OEM parts for diesel and gas engines. Customers benefit from fast quotations, short lead times, and meticulous documentation for technical approvals and class compliance.

Our team supports you with specification checks, cross‑references, and sourcing of complete pipe sets that fit first time. With MOPA, you maintain the integrity of critical fuel systems, reduce installation risk, and keep assets operating on schedule.

Conclusion: INJECTION LINE SET (leakage secured) and Lines and Pipes

Lines and pipes are vital for safe, efficient, and durable engine operation, and the INJECTION LINE SET (leakage secured) is a cornerstone of fuel system integrity. Selecting OEM spare parts suitable for Lines and pipes preserves performance, protects budgets, and extends service life in demanding marine and power applications.

Partnering with MOPA streamlines procurement of compliant, high‑quality OEM parts—keeping your diesel and gas engines operating safely and efficiently.
