STAND PIPE END for Lines and pipes in marine and diesel engines

Lines and pipes are the engineered lifelines of any combustion engine. They route, meter, and protect the flow of fuel, lube oil, cooling water, charge air, hydraulic fluid, and gas—safely and with tight dimensional control. In heavy-duty diesel and marine engine applications, these conduits and their end connections (including the STAND PIPE END) form sealed, pressure-rated circuits that directly influence performance, uptime, and compliance. From common-rail fuel injection lines to jacket-water pipes and lube oil galleries, properly engineered lines and pipes ensure stable flow, maintain design pressure, and resist vibration, pulsation, and corrosion in harsh operating environments.

Technical function of Lines and pipes – STAND PIPE END in marine engine and diesel engine systems

In an engine, each circuit imposes specific demands on lines and pipes. Fuel injection lines, for instance, operate at very high pressure with significant pressure wave dynamics. Their internal volume, wall thickness, and length must be kept within tight tolerances to ensure accurate injection timing and even cylinder-to-cylinder delivery. Cooling water pipes must minimize head losses while resisting corrosion and thermal cycling. Lube oil lines require absolute cleanliness and integrity to protect bearings and turbochargers. Charge-air and gas fuel pipes must hold pressure under pulsation without fatigue cracking. Across all these circuits, the integrity of joints is pivotal—this is where the STAND PIPE END plays a central role.

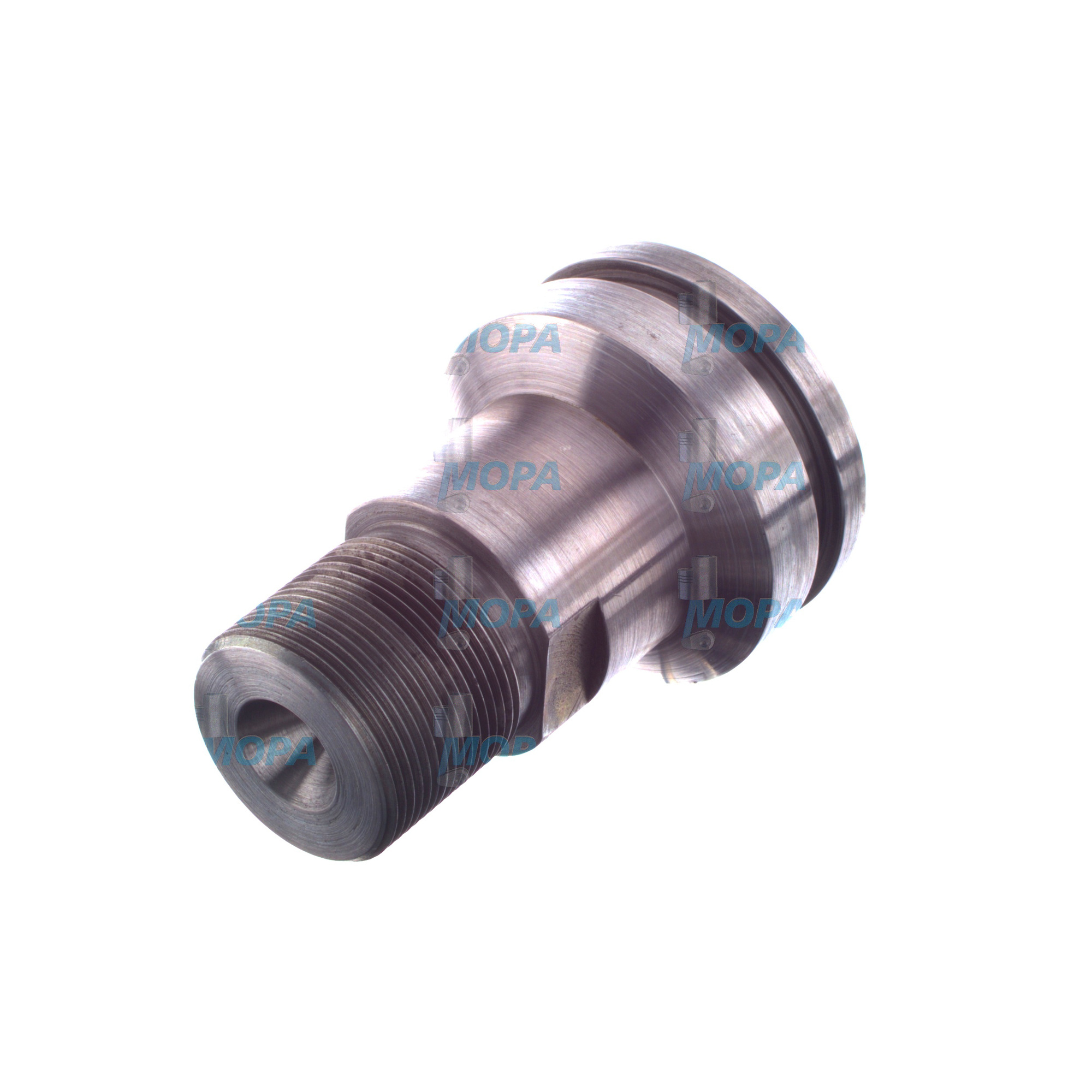

The STAND PIPE END is the precisely machined termination used to connect a rigid standpipe to components such as rails, manifolds, pumps, or distribution blocks. In a diesel engine common-rail system, a STAND PIPE END couples the line to the rail using proven sealing geometries (e.g., 24° cone per ISO 8434-1/DIN 2353, or flange/face-seal interfaces) and maintains a leak-free joint under cyclic loading. In a marine engine fuel or lube circuit, the STAND PIPE END must withstand vibration, misalignment forces, and salt-laden atmospheres while preserving sealing preload. When sourced as OEM parts, STAND PIPE END components are dimensionally matched to mating ports, preserving flow area and natural frequency of the line assembly and preventing resonance-induced failures.

• · High pressure capability and impulse strength
• · Precision-formed geometry for correct routing and clearance
• · Corrosion-resistant materials and coatings suited to marine service
• · Validated sealing interfaces at the STAND PIPE END
• · Cleanliness levels compatible with fuel and lube systems
• · Vibration-resistant clamping and support concepts
• · Traceable materials and process documentation
• · Compatibility with diesel engine and gas engine circuits

Importance of Lines and pipes for engine reliability – role of STAND PIPE END OEM parts

Reliable engines depend on the quiet, uninterrupted operation of their fluid and gas circuits. Wear, fretting, or corrosion in lines, pipes, or a STAND PIPE END can trigger a cascade of issues: fuel leaks and fire hazards, pressure drop that destabilizes injection events, coolant losses that cause overheating, or lube oil starvation leading to bearing damage and turbocharger failures. Even minor dimensional deviations alter pulsation behavior in high-pressure fuel lines, resulting in irregular combustion, increased emissions, and reduced efficiency. On large marine engines, a single compromised connection can force an unscheduled off-hire event, with costs far exceeding the price of the component.

Maintaining specification-correct lines and properly matched STAND PIPE END interfaces preserves flow balance, ensures predictable pressure wave propagation, and protects sealing surfaces. It also supports compliance with class and flag requirements for leak prevention and environmental protection. For technical decision-makers, this translates into stable performance over long service intervals and a lower risk profile for critical machinery.

Advantages of OEM spare parts suitable for Lines and pipes and STAND PIPE END

Using OEM spare parts suitable for Lines and pipes—in particular for the STAND PIPE END connection—provides a measurable operational and financial benefit:

Performance and efficiency

OEM lines and STAND PIPE END components are produced to the engine maker’s drawings and test regimes. Correct inner diameters, wall thickness, and bend radii preserve designed flow coefficients and pressure-wave behavior. The result is accurate injection timing, stable cooling capacity, and consistent lube oil delivery, supporting peak engine efficiency and low specific fuel consumption.

Reliability and service life

Material grades, heat treatment, and surface finishes are specified to resist fatigue and corrosion. Impulse and burst testing validate life under high-cycle loads typical of diesel engine and gas engine service. Matching the connection geometry at the STAND PIPE END prevents micro-leaks and fretting at the seal interface, extending maintenance intervals.

Budget control and total cost of ownership

Right-first-time fit reduces installation hours and rework. Consistent geometry avoids misalignment stress on pumps, rails, and manifolds. Cleanliness controls lower the risk of injector wear or bearing damage. Together, these factors cut unplanned downtime and protect overhaul budgets.

Safety and compliance

OEM parts suitable for critical lines are designed to meet the engine’s pressure class and thermal/vibration envelope. This supports onboard safety management by lowering the probability of leaks, fires, and environmental incidents.

MOPA – your partner for OEM spare parts: Lines and pipes and STAND PIPE END components

MOPA supplies OEM spare parts suitable for Lines and pipes and STAND PIPE END assemblies for diesel and gas engines with speed, quality, and security. Our team supports purchasers and superintendents with fast identification from engine serials and parts lists, precise cross-checking, and technically verified quotations. We prioritize short lead times through a robust supplier network and maintained stock on high-rotation items, and we package sensitive pipe sets to preserve cleanliness and geometry during transit. From single STAND PIPE END connectors to complete fuel, lube, and cooling pipe sets, MOPA focuses on dependable delivery, traceable documentation, and risk-free trade for shipowners and power plant operators.

Conclusion – STAND PIPE END and Lines and pipes in focus

Lines and pipes—together with the correctly matched STAND PIPE END—are fundamental to engine performance, efficiency, and safety. Keeping these components to specification prevents leaks, stabilizes operating parameters, and extends service life.

OEM spare parts suitable for Lines and pipes deliver the dimensional accuracy, material integrity, and proven sealing you need. With MOPA as a partner, you secure fast, reliable sourcing for critical OEM components in diesel and marine engine applications.
