GEARED OIL FEED PUMP – Pumps, parts and accessories for demanding engine lubrication

Pumps, parts and accessories form the backbone of every engine’s lubrication and fluid handling system. This article category covers complete pump assemblies as well as precision components and add-ons that keep oil, fuel, and coolant moving reliably. In heavy-duty applications—whether a marine engine powering a vessel, a land-based diesel engine driving a generator, or a gas engine in industrial service—robust pumps and matching accessories ensure stable pressure, clean flow, and consistent protection of critical components.

Within this category, the GEARED OIL FEED PUMP is a prime example of an essential, high-precision component. Built as a positive-displacement unit, it provides the oil pressure and flow that bearings, camshafts, piston cooling nozzles, and turbochargers need to survive high loads and long operating hours. Surrounding parts and accessories—gears, shafts, housings, relief valves, gaskets, seals, strainers, couplings, and instrumentation—complete the system and secure efficient, safe operation across the full engine duty range.

Technical function: GEARED OIL FEED PUMP in a diesel engine and marine engine

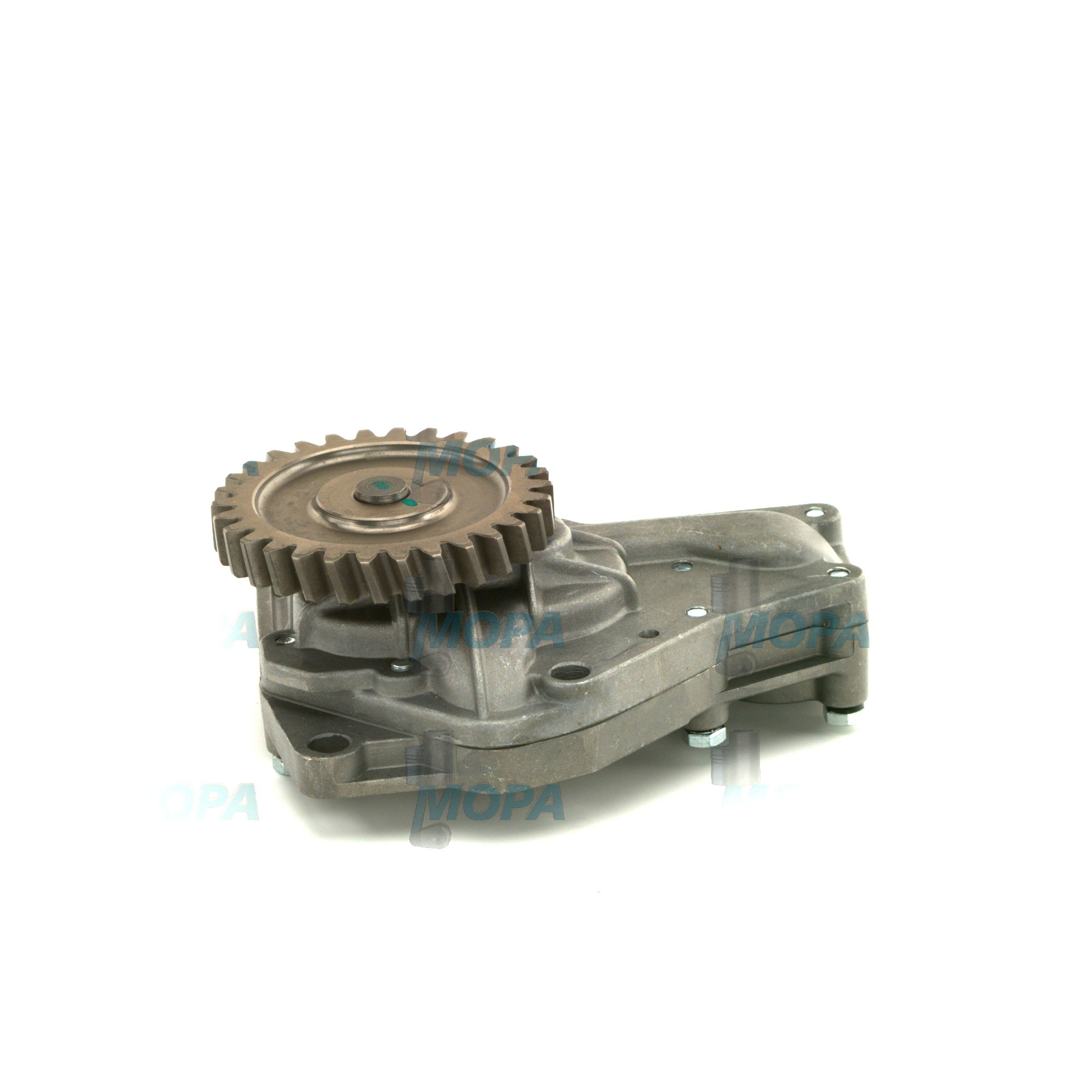

A GEARED OIL FEED PUMP uses two meshing gears inside a close-tolerance housing to move oil from the sump through filters and galleries to all lubricated points. As the gears rotate, they create suction on the inlet side and positive displacement on the discharge side, producing a stable flow proportional to speed. In a diesel engine or marine engine, this stability matters: oil film thickness in main and big-end bearings depends on continuous pressure, typically controlled by a relief valve that bypasses excess flow to maintain a setpoint under varying viscosities and RPM.

Because the pump is positive-displacement, internal leakage is the key limiter of performance. Wear on gear teeth, end plates, and housing bores increases backflow and reduces effective output, most noticeably at hot oil temperatures and idle speeds. Accessories such as suction strainers, non-return valves, and well-matched seals prevent aeration, cavitation, and external leaks. Properly sized pipework, vibration-resistant couplings, and calibrated pressure sensors ensure the GEARED OIL FEED PUMP delivers consistent results, protecting engine performance and efficiency. In many installations, a standby or electrically driven priming pump is included to build pressure before cranking, reducing dry friction on start-up.

• · Positive-displacement gear pumps for reliable oil feed across the RPM range.
• · Precision parts: gears, shafts, bushings, housings, end plates, and relief valves.
• · Sealing solutions: shaft seals, O-rings, gaskets, and carefully matched elastomers.
• · Protective accessories: suction strainers, filters, check valves, and pressure sensors.
• · Engineered materials and finishes for wear resistance and dimensional stability.
• · Configurations for marine engine, diesel engine, and gas engine platforms.

How control and protection work

The pump’s relief valve sets the operating pressure, bleeding off flow when the system exceeds the target. Flow then adapts to engine demand: increased bearing leakage or piston cooling jets at higher load are matched by higher pump RPM. Temperature-appropriate viscosity is critical—oil that is too thin can depress pressure, while oil that is too thick can trigger relief at cold start and reduce downstream flow. Accessories like thermostatic control, bypass filtration, and differential pressure indicators help optimize the lubrication loop.

Importance for engine operation and service life

Reliable lubrication is non-negotiable for engines. The GEARED OIL FEED PUMP and its related parts protect hydrodynamic films in bearings, reduce wear on cam lobes and followers, cool pistons through targeted jets, and feed the turbocharger with clean oil. If the pump or its accessories degrade, the consequences are immediate and costly:

Low oil pressure leads to metal-to-metal contact, bearing wipe, and potential seizure. Internal pump wear raises leakage, lowering effective flow at hot idle. Damaged seals allow air ingress, causing aeration, foaming, and collapsed oil films. A sticking relief valve can either starve the system or overload filters and gaskets. Contaminated strainers elevate suction losses, risking cavitation and rapid gear wear. These failure modes shorten overhaul intervals, increase fuel consumption through higher friction, and create unplanned downtime—especially critical in propulsion and power-generation duty cycles.

Advantages of OEM spare parts suitable for Pumps, parts and accessories

For a GEARED OIL FEED PUMP and the broader category of pumps, parts and accessories, selecting OEM spare parts is the most effective way to maintain designed performance and keep lifecycle costs predictable. OEM parts respect the precise gear tooth profiles, end-clearances, shaft hardness, and housing flatness that determine pump volumetric efficiency. Matching relief valve springs and poppets hold the pressure window steady while avoiding chatter. Correct seal compounds (for example, FKM or NBR) withstand the specified temperature and oil chemistry. Fasteners, dowels, and couplings match the exact geometry, enabling straightforward installation and alignment.

The result is consistent oil pressure at all load points, lower risk of leaks, reduced start-up wear, and reliable protection for bearings and turbochargers. Over time, this translates into fewer unplanned stops, longer service intervals, and lower total cost of ownership. Because OEM parts track the engine maker’s drawings and tolerances, they help maintain compliance with internal maintenance standards and fleet technical policies, while simplifying purchasing and inventory with clear part numbering and documentation.

MOPA as your partner for GEARED OIL FEED PUMP OEM parts

MOPA is an experienced and reliable partner for OEM spare parts across pumps, parts and accessories—covering the complete GEARED OIL FEED PUMP assembly as well as gears, shafts, housings, seals, relief valves, and installation kits. Our focus is speed, quality, and security in the trade of OEM parts for diesel and gas engines. Purchasers and technical managers rely on fast quotations, accurate cross-referencing, and dependable lead times that minimize downtime in dock, at sea, or on site.

With MOPA, you gain streamlined sourcing for marine engine and power-generation fleets, consolidated shipments, and careful packaging that protects precision surfaces. Every delivery is handled with attention to specification, so your maintenance teams can install with confidence and return assets to service quickly.

Conclusion: keep engines protected with the right GEARED OIL FEED PUMP parts

Pumps, parts and accessories—especially the GEARED OIL FEED PUMP—are central to engine protection, efficiency, and uptime. Choosing OEM spare parts suitable for this category preserves design performance, stabilizes lubrication pressure, and extends service life while keeping budgets under control. Partner with MOPA to secure the speed, quality, and security your diesel and gas engines demand.
