DISMANTLING JIG Tools for marine and diesel engines

Tools for engine service are purpose-built instruments and fixtures that enable safe, precise, and efficient maintenance of large power units. In ship engine rooms and power plants, where tolerances are tight and components are heavy, specialist equipment such as a DISMANTLING JIG is indispensable. As part of the wider category of Tools, these fixtures guide disassembly and reassembly steps, protect critical surfaces, reduce the risk of collateral damage, and shorten downtime—directly influencing availability, lifecycle cost, and safety of engines.

DISMANTLING JIG Tools – technical function in marine engine and diesel engine service

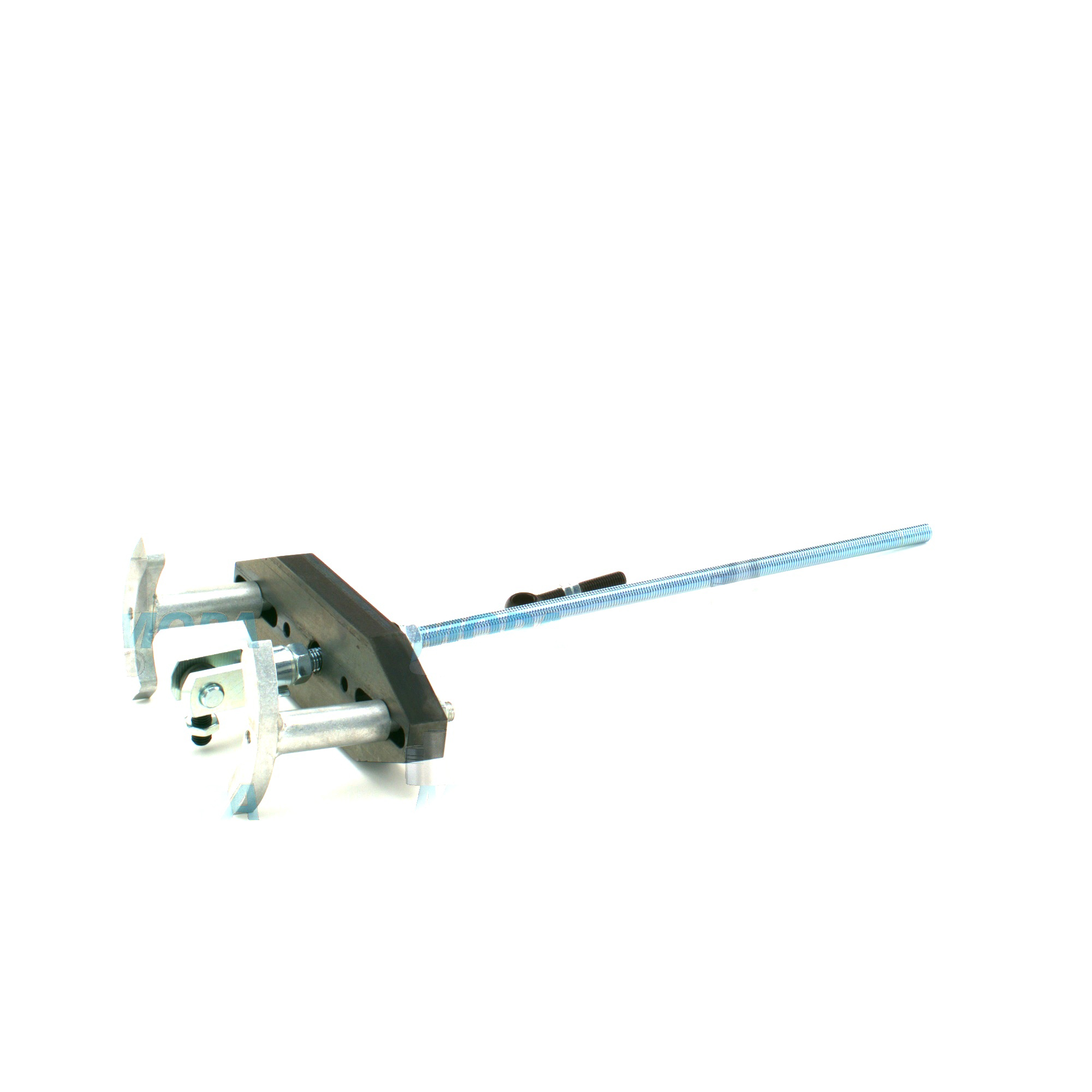

A DISMANTLING JIG is a dedicated fixture engineered to remove and install heavy or interference-fit engine components along a controlled load path. In a marine engine or large stationary diesel engine, it interfaces with defined lift points or threaded bores on cylinder heads, liners, bearing caps, gear housings, or turbocharger casings. By aligning the pulling or lifting force with the engine’s centerline and supporting reaction points precisely, the jig prevents bending moments, eliminates skew, and avoids nicks on sealing faces. Unlike generic lifting methods, a DISMANTLING JIG uses geometry that mirrors the component’s design, so contact occurs on reinforced areas and at defined radii, preserving the underlying metallurgy and surface finish.

Operationally, a DISMANTLING JIG may use mechanical screw force or integrated hydraulics to generate axial extraction force. The tool’s studs, plates, and yokes are dimensioned to the engine frame, distributing loads evenly through sleeves and hardened washers. When paired with dedicated guide pins, stop collars, and alignment bushes, the jig keeps components square during removal and seats them repeatably during installation. This precision is critical when working with OEM parts, where fit and finish depend on adherence to nominal tolerances. In practice, technicians use a DISMANTLING JIG with calibrated torque devices, chain blocks, or gantries to achieve smooth, step-controlled movement even in confined engine rooms.

• · Precise centerline alignment under load.
• · Even force distribution, minimal casting stress.
• · Protection of sealing faces and fits.
• · Repeatable installation of OEM parts to spec.
• · Faster turnarounds and predictable workflows.
• · Safer handling in confined marine engine spaces.
• · Compatibility with service manuals and procedures.
• · Calibration-friendly, traceable maintenance.

Why Tools like a DISMANTLING JIG are vital for engine performance and longevity

Engines deliver performance and efficiency only when assemblies remain geometrically correct. Improper handling during overhaul can introduce misalignment, microscopic scoring, and stress concentrations that later show up as oil leaks, blow-by, vibration, or premature wear. Using the correct Tools—especially a DISMANTLING JIG for a diesel engine—prevents side-loads on guides, avoids edge-loading of bearings, protects liner landing surfaces, and maintains gasket compression zones. The cumulative effect is measurable: stable compression, consistent thermal behavior, and clean leakage profiles over thousands of running hours.

Conversely, worn or unsuitable Tools compromise reliability. Bent puller bars, galled threads, out-of-square yokes, or improvised lifting points can twist components, crack coatings, or bruise sealing faces. Such damage may not be immediately visible; it can emerge later as liner fretting, distorted head geometry, coolant seepage, or turbo casing rubs—issues that escalate maintenance cost and off-hire risk. A properly maintained DISMANTLING JIG protects both personnel and assets, reducing incident rates and ensuring that the engine returns to service within target parameters.

Advantages of OEM spare parts suitable for Tools in diesel and gas engines

When service teams combine the right Tools with OEM spare parts, outcomes are superior in performance, reliability, and budget control. A DISMANTLING JIG is dimensioned around nominal component geometry; using OEM spare parts suitable for those dimensions ensures the fit-up behaves as designed. Surface finishes, interference levels, chamfers, and thread forms match the tool’s contact elements, so parts seat smoothly without excessive force, and torque-angle values translate into correct preload.

For purchasers and technical managers, the practical benefits are clear: OEM spare parts bring consistent metallurgy, validated heat treatment, and controlled tolerances that align with service fixtures. This lowers the risk of rework, reduces commissioning time, and stabilizes service intervals. Over the lifecycle, fewer unplanned interventions and minimized collateral damage translate into a better cost profile and longer component life.

DISMANTLING JIG and OEM parts: performance, reliability, budget, service life

Pairing a DISMANTLING JIG for a marine engine with OEM parts keeps extraction forces within design limits, protects mating surfaces during reassembly, and maintains alignment. The result is predictable sealing, optimized friction behavior, and stable temperatures—factors that directly influence specific fuel oil consumption and emissions. Budget-wise, fewer damaged parts and shorter dock times improve total cost of ownership, while consistent part quality supports long service life between overhauls.

MOPA – your partner for DISMANTLING JIG Tools and OEM spare parts

MOPA supplies OEM spare parts suitable for Tools and complex overhauls on diesel and gas engines, combining speed, quality, and transaction security. Our team cross-references part numbers and drawing revisions to ensure that the DISMANTLING JIG, associated guides, and the installed components match current specifications. We provide rapid quotations, reliable lead times, and careful export packing to protect precision surfaces. Batch traceability and comprehensive documentation support safe audits and class requirements, while our logistics network accelerates deliveries to ports and plants worldwide.

Whether you plan a top-end overhaul or a full major, MOPA helps you align the service kit, OEM parts, and Tools so that the job runs to plan, risks are minimized, and the engine returns to optimum output quickly.

Conclusion – DISMANTLING JIG Tools and OEM parts for dependable operation

A DISMANTLING JIG is a cornerstone Tool in professional engine maintenance, enabling precise, damage-free handling of heavy components on marine and diesel engines. When combined with OEM spare parts suitable for the application, it supports peak performance, predictable costs, and extended service life. MOPA delivers the parts and expertise to make that combination work in your favor—fast, secure, and to specification.
