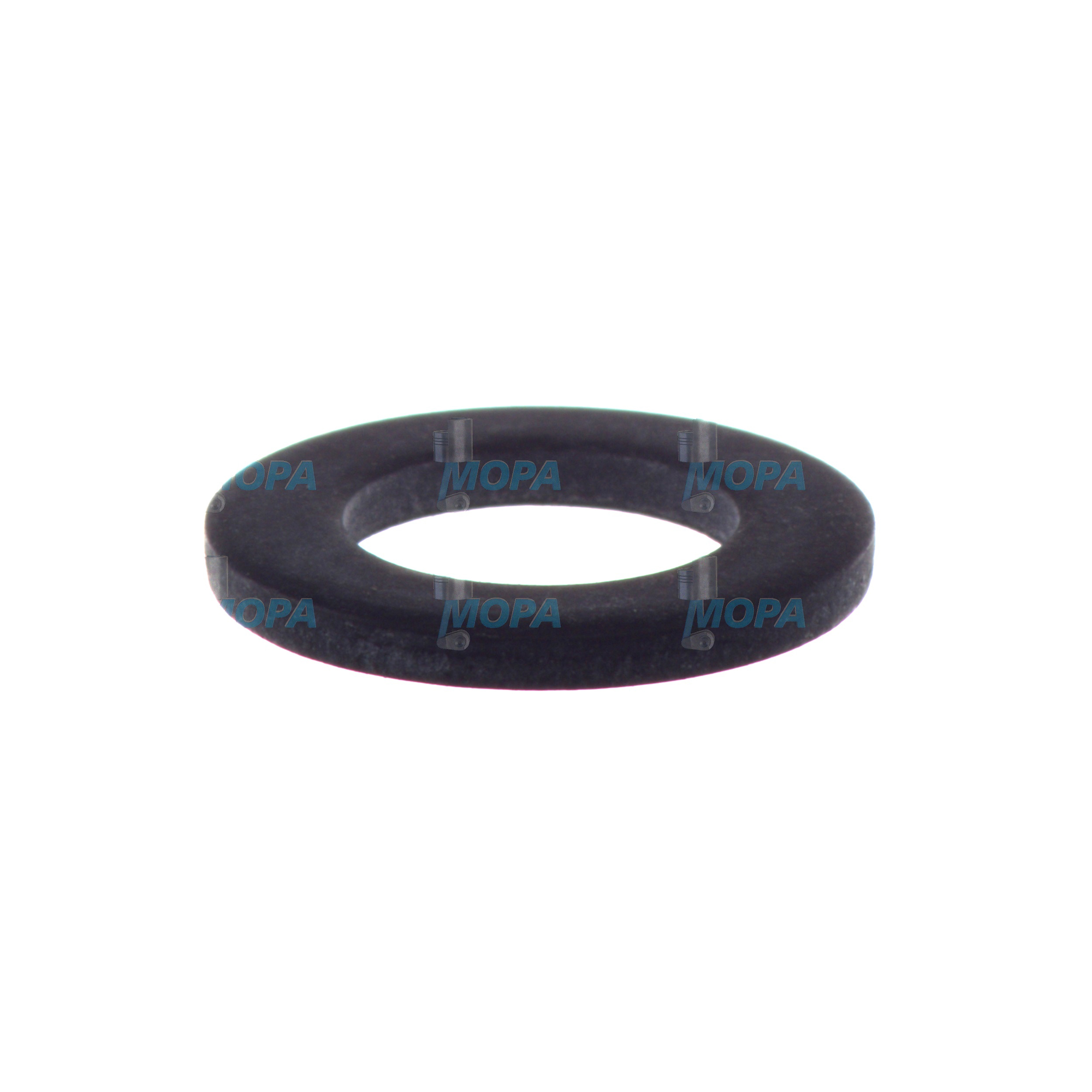

SHIM RING Washers for Precision in Diesel and Marine Engines

Washers are small but critical machine elements that distribute loads, set clearances, seal fluid connections, and maintain alignment across engine assemblies. Within this family, precision shims—often referred to as a SHIM RING—ensure exact spacing where microns matter. In heavy-duty diesel engines and marine engines, the correct selection and fit of washers directly influence torque retention, vibration behavior, sealing integrity, and the long-term stability of rotating and reciprocating components. That is why purchasing decision-makers treat washers not as commodities, but as engineered parts integral to performance and safety.

Whether used beneath fastener heads on a cylinder head, as a sealing washer on a high-pressure fuel connection, or as a SHIM RING to set gear train backlash, these parts safeguard the geometry and loads that an engine was designed to operate with. When tolerances are tight and loads are high, washers and shims protect both uptime and total cost of ownership.

Technical function: how washers and the SHIM RING work in a diesel engine

Engines rely on exact clearances. A SHIM RING for a diesel engine or marine engine provides controlled thickness to establish axial play, preload, or alignment. Typical applications include valve-train lash adjustment (under-bucket shims or follower pads), camshaft thrust control, gear train backlash setting, injection pump timing shims, and alignment of auxiliaries. Flat washers, spring washers, and sealing washers complement these roles by distributing clamping forces, resisting loosening due to vibration, and sealing oil, coolant, or fuel connections.

In practice, a SHIM RING OEM parts set lets technicians choose from graded thickness steps to achieve the specified clearance window without re-machining. Precision-ground surfaces maintain parallelism so the contact stresses remain predictable under torque. In bolted joints—such as main bearing caps, cylinder heads, and exhaust manifolds—hardened washers spread the load, minimize embedding, and help maintain clamp force across thermal cycles. Sealing washers (e.g., copper or coated steel) prevent micro-leaks at banjo bolts, injector lines, and lube oil galleries where pressure pulses are high and surfaces see repeated thermal expansion.

Material and finish are central to function. Hardened and tempered steels resist brinelling under high clamp loads; stainless steels offer corrosion resistance; copper and soft-metal laminates provide controlled compressibility for sealing. Edge quality reduces stress raisers, and surface finish ensures repeatable torque-tension relationships. The result: consistent performance throughout service intervals and stable dimensions under heat, oil, and fuel exposure.

• · Precise thickness classes for accurate clearance settings.
• · Hardened, ground surfaces for stable torque and load distribution.
• · Materials matched to duty: steel, stainless, or soft-metal sealing types.
• · High temperature and corrosion resistance in marine engine environments.
• · Reliable sealing of fuel, oil, and coolant connections.
• · Reduced fretting, loosening, and vibration-related failures.
• · Drop-in dimensional fit for efficient overhauls and repairs.

Importance for engine operation: reliability, efficiency, and safety

Washers directly affect engine reliability and life. If a SHIM RING is out of tolerance, backlash or valve lash can deviate from spec, leading to timing inaccuracy, noise, impact loading, accelerated wear, and higher emissions. Excess axial play in camshafts or balance shafts can trigger lubrication issues and instability at speed. Incorrect sealing washers risk fuel or oil leaks—an obvious safety concern aboard vessels and a cause of contamination, fire hazard, and unplanned downtime.

Loss of clamp force from inadequate or softened washers can cause gasket failure, distortion of mating faces, and bolt relaxation. Over time, the consequences range from elevated vibration and bearing distress to catastrophic component failure. Conversely, correctly specified washers maintain design geometry, stabilize torque, and protect joint integrity, which translates into better efficiency, longer service intervals, and predictable maintenance planning.

Advantages of OEM spare parts suitable for washers and SHIM RING

Selecting OEM spare parts suitable for washers ensures dimensional accuracy and material properties that align with the engine maker’s specification. Thickness grading is consistent, surfaces are properly hardened or annealed for the intended duty, and sealing features are validated for pressure, temperature, and media compatibility. This technical fidelity keeps the torque-tension relationship predictable, simplifies quality control, and reduces rework during overhauls.

From a budget perspective, correct washers reduce lifecycle cost by preventing micro-leaks, clamp-loss events, and misalignment that would otherwise degrade components upstream and downstream. Fit-for-purpose SHIM RING OEM parts also streamline downtime: technicians can achieve target clearances quickly, avoid improvisation, and return the asset to service on schedule. Traceable manufacturing and stable specifications make procurement and compliance audits straightforward, which is essential for fleet operators and class-regulated vessels.

MOPA as your partner for SHIM RING washers and OEM parts

MOPA is an experienced and reliable partner for OEM spare parts in the category of washers, including the SHIM RING for diesel and gas engines. We prioritize speed, quality, and security in parts supply, supporting marine engine operators and industrial power plants with quick availability, exact part-number matching, and robust packaging for global shipment.

Our team cross-references drawings and change levels, consolidates multi-brand requirements, and provides kitted solutions for scheduled overhauls. With MOPA, purchasers and shipowners gain a partner focused on minimizing turnaround time, safeguarding technical conformity, and ensuring the right washer or SHIM RING reaches your maintenance team when it is needed.

Conclusion

Washers—and especially the precision SHIM RING—are essential to the geometry, sealing, and stability of diesel and marine engines. Correct selection sustains performance, efficiency, and safety throughout the service life.

OEM spare parts suitable for washers deliver the dimensional accuracy and material reliability that operations depend on, while MOPA provides the speed and assurance needed to keep critical assets running.
