PRESSURE CONTROL VALVE

PRESSURE CONTROL VALVE – Valves for Marine and Diesel Engines

Valves are precision components that manage the flow and pressure of gases and liquids inside an engine. From fuel injection and lubrication to cooling, air start, and exhaust, every major subsystem relies on correctly specified valves to hold pressure, meter flow, and respond predictably under load. In heavy-duty applications—such as a marine engine on continuous duty or a high-output diesel engine in standby power—valves protect core components, stabilize operating parameters, and keep emissions and efficiency within specification. Within this category, the PRESSURE CONTROL VALVE plays a pivotal role by regulating pressure in fuel rails, lubrication galleries, and auxiliary circuits to match dynamic engine demand.

Whether installed in large-bore two-stroke propulsion units or medium-speed generator sets, valves must combine robust materials, tight tolerances, and precise calibration. The result is reliable sealing, rapid actuation, and stable pressure control across a broad operating envelope, even as temperatures, viscosities, and loads fluctuate.

Technical function of Valves and the PRESSURE CONTROL VALVE in engine systems

In an engine, “valve” encompasses several designs—poppet, spool, needle, check, relief, and thermostatic—each serving a distinct function. A PRESSURE CONTROL VALVE in a diesel engine typically uses a spring-biased poppet or a proportional solenoid-operated spool to modulate return flow and maintain a defined setpoint in the rail or circuit. The engine control unit (ECU) trims the valve duty cycle to match instantaneous fuel or oil demand, holding pressure steady during transients such as load acceptance, maneuvering, or start/stop events.

On marine engine common-rail systems, a PRESSURE CONTROL VALVE may stabilize rail pressure within narrow tolerances despite injector opening events that momentarily depress the rail. In lubrication systems, relief and pressure-regulating valves prevent overpressure during cold starts and maintain target pressure (often in the 3–7 bar range) once oil reaches operating temperature. Cooling circuits use thermostatic and bypass valves to control temperature gradients, reducing thermal stress and improving efficiency. Air systems depend on non-return and safety valves to isolate start air receivers and protect against backflow or overpressure, commonly in the 20–30 bar range.

How a PRESSURE CONTROL VALVE stabilizes fuel-rail pressure in a diesel engine

Fuel delivery benefits directly from precise pressure regulation. When the pump output exceeds injector demand, the PRESSURE CONTROL VALVE meters excess fuel back to the tank or low-pressure side, keeping the rail within the ECU’s target window. This stabilizes injection timing, droplet size, and combustion quality, directly impacting power density, fuel efficiency, and emissions. The same principle applies to gas engines with regulated gas admission: steady differential pressure across the metering device ensures repeatable combustion and avoids knock.

Valves protecting lubrication and cooling performance on a marine engine

In the lube circuit, pressure-regulating and safety valves protect bearings, cam followers, and turbocharger journals from both starvation and pressure spikes. Bypass valves route oil around clogged filters to prevent catastrophic pressure loss, while check valves preserve prime during shutdown. In the cooling loop, temperature-stable valve operation accelerates warm-up, maintains optimal jacket-water temperature, and prevents localized boiling under high load—key to component longevity.

· Accurate pressure control across transient and steady-state operation.
· Robust sealing surfaces for high-temperature and high-pressure media.
· Fast response to ECU commands in electronically actuated designs.
· Materials and coatings that resist corrosion, cavitation, and wear.
· Stable performance with varying viscosity and temperature.
· Integrated safety features to prevent overpressure events.

Importance for engine operation and service life

Valves are mission-critical for reliability. If a PRESSURE CONTROL VALVE drifts out of calibration or its sealing surfaces erode, several issues can arise: unstable rail pressure causes rough running, elevated emissions, and injector wear; low lube oil pressure accelerates bearing damage and turbocharger failures; relief valves stuck closed can blow seals or rupture filters; check valves leaking back lead to hard starts; and cooling valve malfunctions induce thermal shock, head gasket failures, or liner scuffing. For marine operators, these risks translate into unplanned downtime, higher fuel consumption, and elevated maintenance costs—often far exceeding the cost of timely valve replacement.

Regular condition monitoring—tracking pressure trends, response times, and leak-off rates—combined with preventive replacement intervals helps keep engines within design parameters. Choosing components with the correct calibration, flow coefficients, and material specs is fundamental to avoiding recurrence.

Advantages of OEM spare parts suitable for Valves

Using OEM spare parts suitable for Valves—especially for a PRESSURE CONTROL VALVE in a marine engine or diesel engine—ensures fit-for-purpose performance. These components are built to the same dimensional tolerances, spring rates, and magnetics (for solenoids) specified by the engine platform. Material selections for seats, guides, and seals (e.g., hardened steels, Stellite overlays, FKM/PTFE compounds) match the thermal and chemical environment of fuel, oil, or gas. Flow calibration and leak-down characteristics align with ECU maps and service documentation, so engines return to baseline performance after overhaul.

The result is predictable behavior, streamlined installation, and consistent life-cycle cost control. Traceable OEM parts help maintain compliance, simplify troubleshooting, and reduce the risk of cascading failures caused by pressure instability. For fleets, standardizing on OEM spare parts suitable for Valves supports consistent maintenance planning and inventory efficiency across vessel classes and power plants.

MOPA: fast, secure supply of OEM spare parts for Valves

MOPA is a reliable partner for sourcing OEM parts for diesel and gas engines, with deep expertise in Valves and the PRESSURE CONTROL VALVE across multiple engine families. Customers benefit from short lead times, rigorous quality control, and secure logistics from quotation to delivery. MOPA supports purchasers and technical teams with component cross-references, documentation, and application advice, ensuring that the selected OEM spare parts suitable for Valves align with the required pressure ranges, materials, and control strategies. For marine engine operators and power-generation sites, this combination of speed, quality, and security minimizes downtime and safeguards engine performance.

Conclusion

Valves are essential to stable, efficient engine operation, and the PRESSURE CONTROL VALVE is central to precise pressure management in fuel, lube, and auxiliary systems. Selecting OEM spare parts suitable for Valves restores design-level performance, extends service life, and protects budgets by reducing unplanned stops. With MOPA as a partner, operators secure the right OEM parts quickly and confidently for diesel and gas engines in demanding duty cycles.

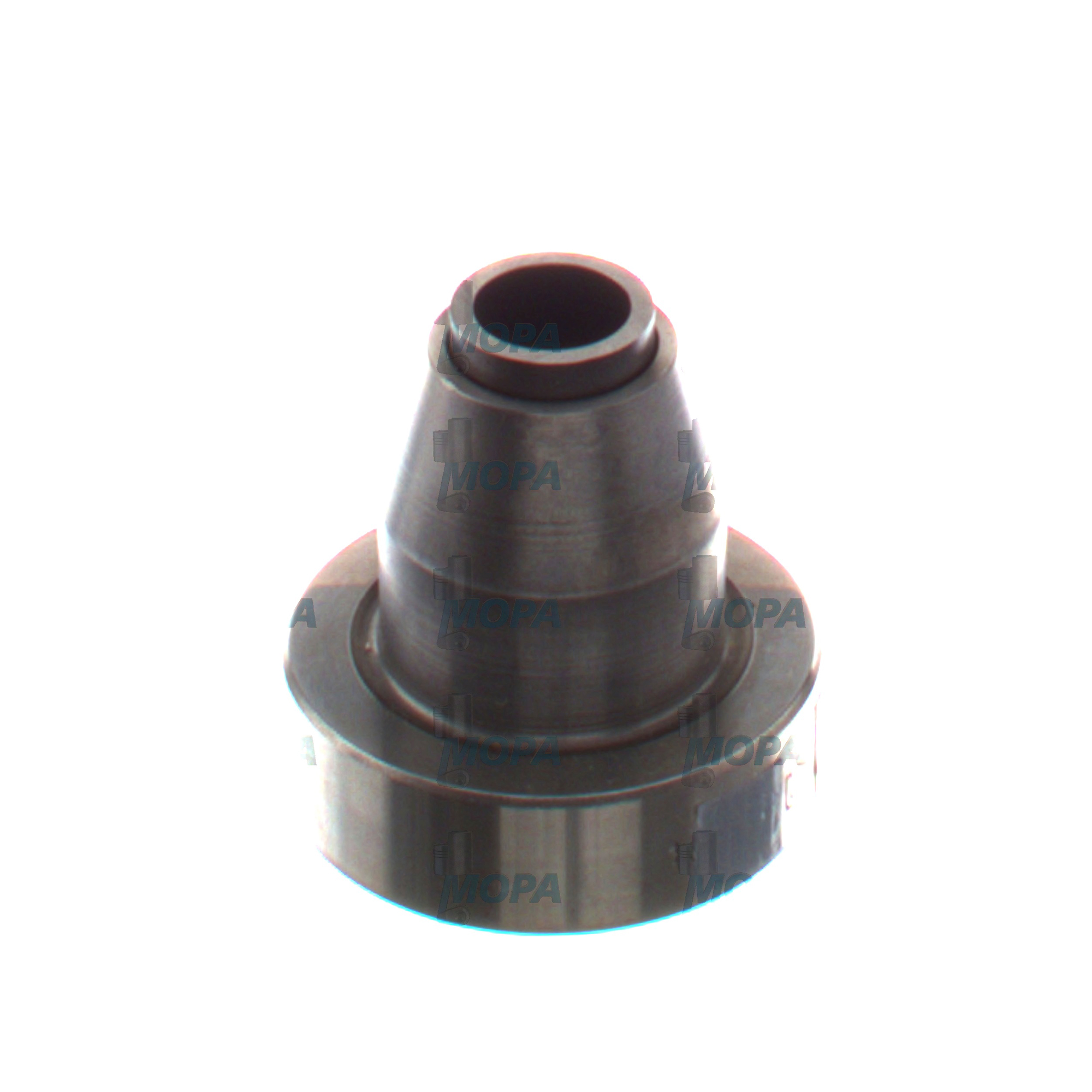

PRESSURE CONTROL VALVE - 2418592089 suitable for Bosch engines

Trust Our Premium Pressure Control ValveDiscover our pressure control valve, specifically designed and suitable for Bosch engines. With the comparison number 2418592089, this reliable OEM replacement part is an essential component for diesel and gas engines used in various applications. Thanks to high manufacturing standards, this product offers the necessary assurance for a long lifespan.Quality from Bosch: The Right ComponentThis product not only impresses with its value but also with its connection to the quality of Bosch. The pressure control valve is suitable for various engine systems and meets the demanding standards of the industry. Each component is manufactured as an OEM replacement part, which is reflected in the outstanding performance and efficiency it brings to your engines.
